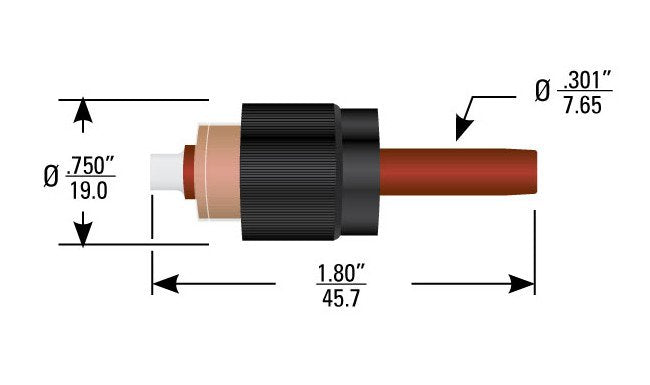

Series 720 Plug Kit - High Voltage Single Pin Connector
Series 720 Plug Kit - High Voltage Single Pin Connector
SKU:HIG-dac4a9
Reliable high voltage Series 720 Plug Kit with 20 kVDC voltage rating, threaded coupling style, and compatible with LGH 1I series receptacles.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Series 720 Plug Kit - High Voltage Single Pin Connector
$49.99
Quantity: 1
Claim Your Seller Account
Series 720 Plug Kit - High Voltage Single Pin Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 720 Plug Kit offers a reliable solution for high voltage applications with a voltage rating of 20 kVDC, current ratings of 10 Amp, 4 Amp, and 6 Amp, and an operating temperature range of -55 to 125 °C. This threaded coupling style plug bag assembly is compatible with LGH 1I series receptacles and other specified models, ensuring seamless integration. The silicone insulator, BeCu female contacts with gold finish, and stainless steel female contact hood provide durability and efficiency. Designed for wire diameter .280 in, this standard part is ideal for various institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1I
Specifications Mating Compatibility
Mates all series 720 receptacles and LGH LI series receptacles. Also mates Reynolds C720 series RC1525 and 3RC1525 receptacles; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
Specifications Wire Type
Silicone
Wire Properties Accomodates Wire Diameter
.280 in | 7.11 mm
Wire Properties Wire Pn
167-9180
