The Series 720 Sealed Receptacle Right Angle Connector is a high voltage single pin connector designed for critical applications. With a current rating of 10 Amp, 4 Amp, and 6 Amp, this connector operates in temperatures ranging from -55 to 125 °C and is rated at 25 kVDC for reliable performance. Its front panel mount style, silicone seals, and compatibility with LGH™ LI lead assemblies make it a versatile and durable solution for your connectivity needs.
Ready to Grow Without Cash Flow Constraints?

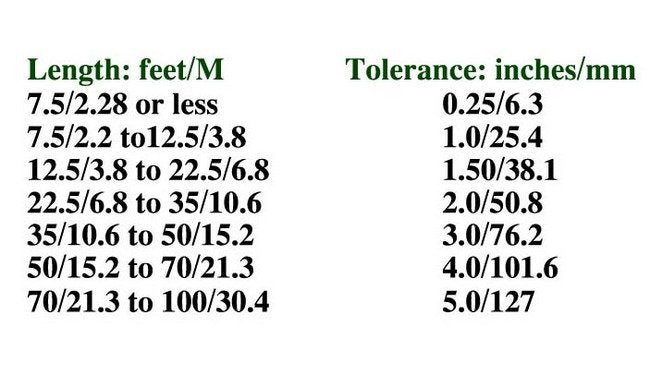

Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Dimensions A
1.360 in | 34.5 mm
Dimensions B
.630 in | 17.4 mm
Dimensions C
.635 in | 16.1 mm
Dimensions D
.960 in | 24.4 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1I
Specifications Mating Compatibility
Mates all series 720 and LGH LI lead assemblies Also mates all 20 kVDC rated Reynolds C720 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Max Panel Thickness
.250 in | 6.35 mm
Specifications Operating Temperature
-55 to 125 ºC
Specifications Optional Mounting Hole A
.480 in | 12.19 mm
Specifications Optional Mounting Hole B
.508 in | 12.90 mm
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
23 to 28 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Seal Material
Silicone
Specifications Series
720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
