Series 722F Shipside Butterfly Valves
Series 722F Shipside Butterfly Valves
SKU:VAL-4696a8
Highly durable Shipside Butterfly Valves designed for marine applications with long-term leak tightness and easy maintenance.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Series 722F Shipside Butterfly Valves
$1,499.99
Quantity: 1
Claim Your Seller Account
Series 722F Shipside Butterfly Valves
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

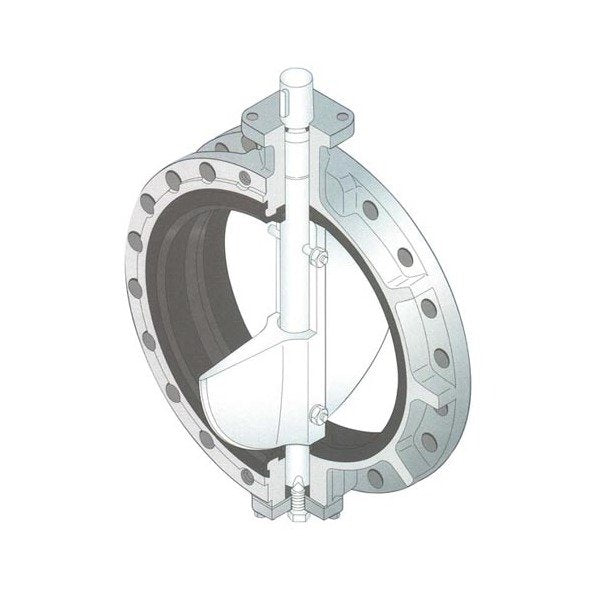

The Series 722F Shipside Butterfly Valves with Double Flanged Body are engineered for demanding marine applications, combining bubble-tight closure with exceptional durability. Meeting international standards and marine approvals, these valves ensure long-term leak tightness and easy maintenance, with replaceable seats and discs. With a robust construction using high-quality materials such as cast steel and EPDM/NBR seals, these valves offer reliable performance even in challenging maritime environments.
Product Specifications
Dimensional Information A1
6 mm
Dimensional Information A2
70 mm
Dimensional Information A3
79 mm
Dimensional Information A Min Internal Diameters Of Piping
411 mm
Dimensional Information B
14 mm
Dimensional Information Bh
19 mm
Dimensional Information C1
140 mm
Dimensional Information D
620 mm
Dimensional Information D1
140 mm
Dimensional Information D2
50 mm
Dimensional Information H1
356 mm
Dimensional Information H2
390 mm
Dimensional Information L
150 mm
Dimensional Information L1
134 mm
Dimensional Information T
20 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U1 1/8
Flange Information Ansi 125lb150lb Hexagon Boltsnuts
U1 1/8
Flange Information Ansi 125lb150lb Hexagon Boltsnuts Length
110 mm
Flange Information Ansi 125lb150lb Hexagon Bolts Length
85 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Hexagon Boltsnuts
24
Flange Information Applicable Flange Standard
JIS 10K( JIS 5K, ANSI 125Lb/150Lb, PN10)
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
54 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
54 mm
Flange Information Jis 10k Hexagon Bolts
M24
Flange Information Jis 10k Hexagon Boltsnuts
M24
Flange Information Jis 10k Hexagon Boltsnuts Length
100 mm
Flange Information Jis 10k Hexagon Bolts Length
65 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
32
Specifications Actuators
Center Handle | Electric Motor | Extension Stem / Shaft | Hydraulic Motor | Pneumatic Motor | Worm Gear
Specifications Body Material
Cast Steel, JIS SCPH2
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Disc Material
SCS13(304SS)
Specifications Maxworking Pressure
1.0 MPa
Specifications Painting
Epoxy primer finish (Munsell N7)
Specifications Seat Material
EPDM | NBR
Specifications Size
450 - 18"
Specifications Stem Material
SUS 403
