Series 730/830 Front Panel Mount Receptacle Connector

Series 730/830 Front Panel Mount Receptacle Connector

HIG-72fb5b

High voltage front panel mount receptacle connector with 15 kVDC test voltage, ceramic/plastic insulator, and LGH 1/2I compatibility.

$49.99
$49.99
Sale

Initiate Order

Series 730/830 Front Panel Mount Receptacle Connector

Series 730/830 Front Panel Mount Receptacle Connector

$49.99

Quantity: 1

Claim Your Seller Account

Series 730/830 Front Panel Mount Receptacle Connector

Series 730/830 Front Panel Mount Receptacle Connector

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series 730/830 Front Panel Mount Receptacle Connector is a high-performance solution for high voltage applications, offering a current rating of 4-6 Amp and an operating temperature range from -55 to 125°C. This connector is designed for altitude/reduced pressure environments up to 70,000 ft., with a test voltage of 15 kVDC. It features ceramic/plastic insulator material, a sealed receptacle, and compatibility with LGH 1/2I assemblies. With a threaded coupling style, this connector ensures secure connections and has a maximum leak rate of 1 X 10-6 cc/sec. Ideal for institutional and government procurement needs, this connector meets stringent industry standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male

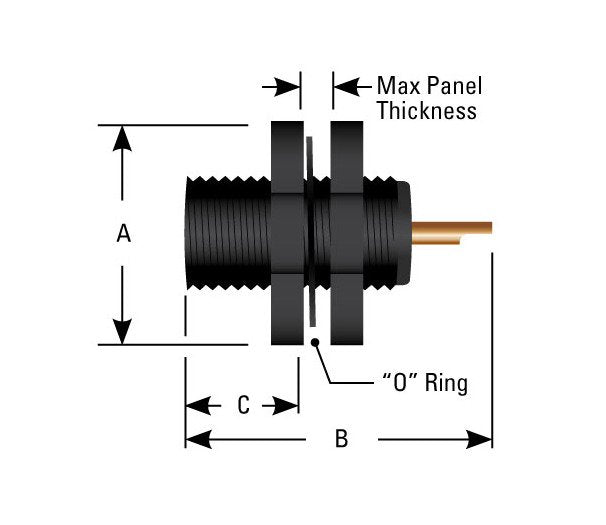

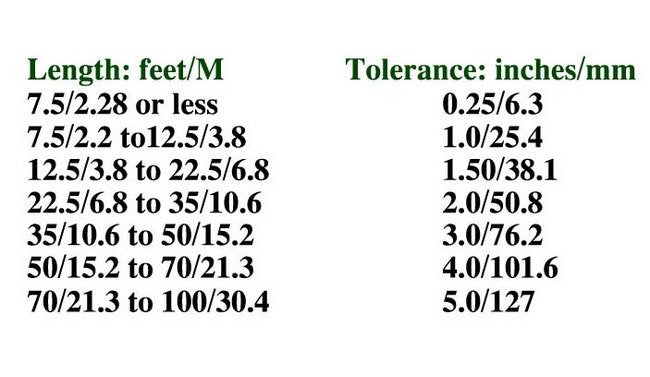

Dimensions A
.625 in | 15.88 mm
Dimensions B
.850 in | 21.59 mm
Dimensions C
.375 in | 9.53 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Ceramic | Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all Series 730,830 and LGH 1/2I lead assemblies. Also mates all 10 kVDC rated Reynolds C730 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Max Panel Thickness
.188 in | 4.78 mm
Specifications Operating Temperature
-55 to 125 ºC
Specifications Optional Mounting Hole A
.295 in | 7.49 mm
Specifications Optional Mounting Hole B
.323 in | 8.20 mm
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
5 to 6 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Seal Material
Fluorosilicone
Specifications Series
730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
