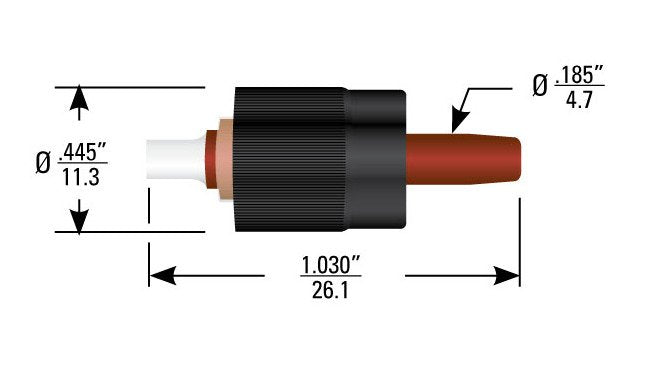

Series 730 Plug Kit Plastic Coupling Nut 10kVDC
Series 730 Plug Kit Plastic Coupling Nut 10kVDC
SKU:HIG-9cdbb0
High-reliability Series 730 Plug Kit Plastic Coupling Nut - ideal for 10kVDC applications. Silicone insulator, gold-finished BeCu contacts for reliability.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Series 730 Plug Kit Plastic Coupling Nut 10kVDC
$25.99
Quantity: 1
Claim Your Seller Account
Series 730 Plug Kit Plastic Coupling Nut 10kVDC
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 730 Plug Kit Plastic Coupling Nut is a high-reliability single-pin connector designed for demanding environments. With a current rating of 4 Amp | 6 Amp, operating temperature range of -55 to 125°C, and voltage rating of 10kVDC, this connector ensures secure and efficient electrical connections. It mates seamlessly with various receptacles, including LGH 1/2I series and Reynolds C730 series, offering versatility and compatibility. The silicone insulator material provides excellent durability, while the gold-finished BeCu contacts offer reliable conductivity. Designed for standard parts compliance, this threaded coupling nut assembly is ideal for high-voltage applications in aerospace, defense, and industrial sectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all series 730 & 830 receptacles and LGH 1/2I series receptacles. Also mates Reynolds C730 series RC1505,2RC1505 and 3RC1505 receptacles.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
Silicone
Wire Properties Accomodates Wire Diameter
0.150 in | 3.81 mm
Wire Properties Wire Pn
167-9193
