Series 737 15kVDC Single Pin High Voltage Cable Assembly
Series 737 15kVDC Single Pin High Voltage Cable Assembly
SKU:HIG-652946
High-performance Series 737 15kVDC Single Pin Cable Assembly for critical applications. Altitude tested up to 70,000 ft. Threaded coupling style, 18 kVDC test voltage, -55 to 125 ºC operating temp.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Series 737 15kVDC Single Pin High Voltage Cable Assembly
$49.99
Quantity: 1
Claim Your Seller Account
Series 737 15kVDC Single Pin High Voltage Cable Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

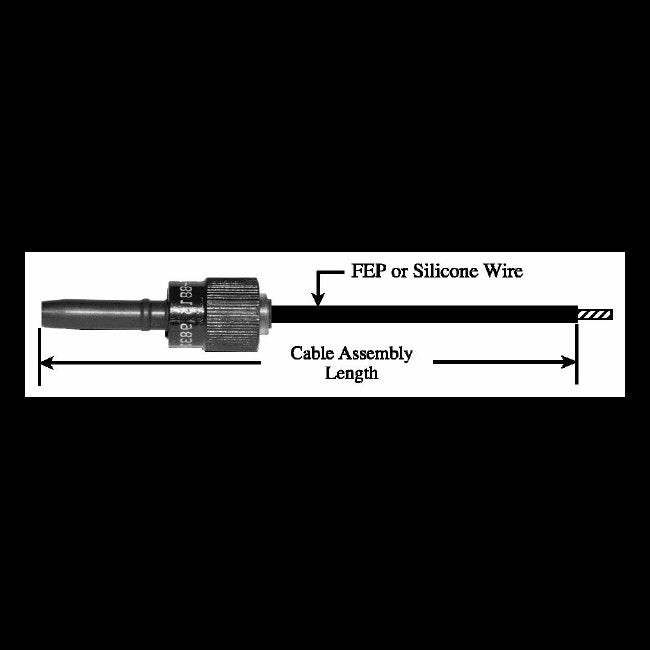

The Series 737 15kVDC Single Pin High Voltage Cable Assembly is designed for high reliability applications requiring exceptional performance. Featuring 0.080" FEP wire & PIN 167-8849 connector with a fluorosilicone rubber insulator, this threaded coupling style assembly is ideal for altitude up to 70,000 ft. and operating temperatures ranging from -55 to 125 ºC. With a test voltage of 18 kVDC, this non-standard part assures compatibility with LGH 1/2 1I connectors, offering a current rating of 4 Amp | 6 Amp. Robust and compliant, this assembly meets stringent procurement standards and is a top choice for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1/2 1I
Specifications Mating Compatibility
Mates all Series 737 receptacles and all LGH 1/2LI series receptacles. Also mates Reynolds C737 receptacles RC1515, 2RC1515 and 13RC1515; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
737
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
15 kVDC
