Series 737 Double-Ended Cable Assembly - 15 kVDC Hi-Rel Single Pin Connector

Series 737 Double-Ended Cable Assembly - 15 kVDC Hi-Rel Single Pin Connector

HIG-49460b

High-voltage double-ended cable assembly for Series 737 & LGH 1/2LI series receptacles, 15 kVDC, altitudes up to 70,000 ft, current rating 4A | 6A.

$129.99
$129.99
Sale

Initiate Order

Series 737 Double-Ended Cable Assembly - 15 kVDC Hi-Rel Single Pin Connector

Series 737 Double-Ended Cable Assembly - 15 kVDC Hi-Rel Single Pin Connector

$129.99

Quantity: 1

Claim Your Seller Account

Series 737 Double-Ended Cable Assembly - 15 kVDC Hi-Rel Single Pin Connector

Series 737 Double-Ended Cable Assembly - 15 kVDC Hi-Rel Single Pin Connector

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

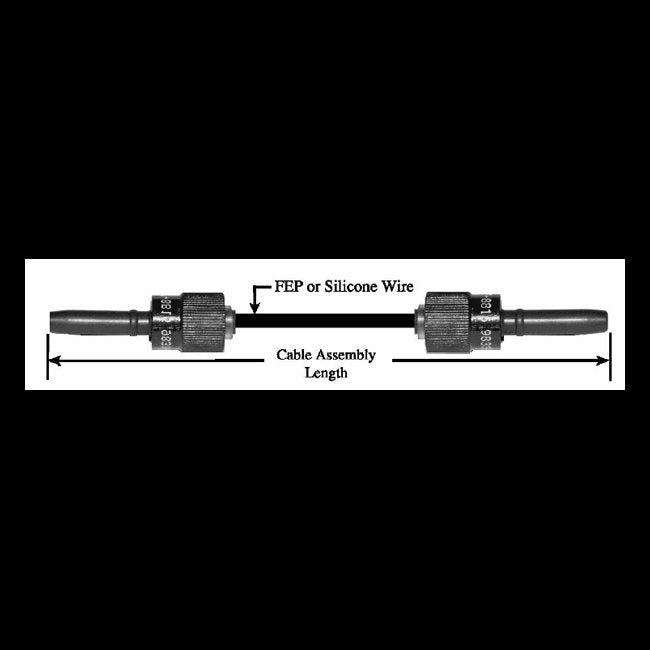

The Series 737 Double-Ended Cable Assembly is designed for high-voltage applications, featuring 0.080" FEP wire & P/N 167-8849 connectors with fluorosilicone rubber insulators. With a current rating of 4A | 6A and an operating temperature range from -55 to 125 ºC, this non-standard part is suitable for altitudes up to 70,000 ft. It mates seamlessly with Series 737 receptacles, LGH 1/2LI series receptacles, and Reynolds C737 receptacles RC1515.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1/2 1I
Specifications Mating Compatibility
Mates all Series 737 receptacles and all LGH 1/2LI series receptacles. Also mates Reynolds C737 receptacles RC1515, 2RC1515 and 13RC1515; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
737
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
15 kVDC
