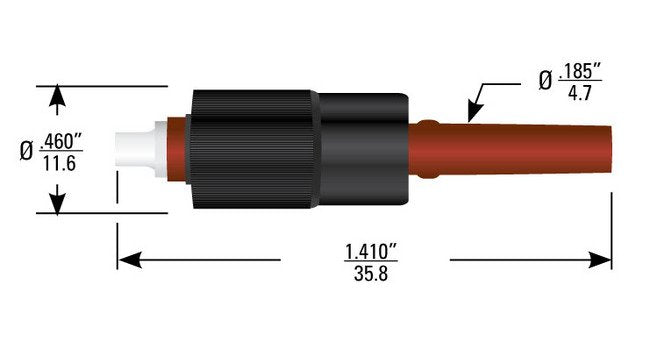

Series 737 Hi-Rel Plug Kit
Series 737 Hi-Rel Plug Kit
SKU:HIG-57d55e
High-voltage Series 737 Hi-Rel Plug Kit with silicone insulator, threaded coupling, and 15 kVDC rating for reliable and efficient connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Series 737 Hi-Rel Plug Kit
$29.99
Quantity: 1
Claim Your Seller Account
Series 737 Hi-Rel Plug Kit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 737 Hi-Rel Plug Kit is designed for high-voltage applications, featuring a silicone insulator for 0.150 Dia. wire. With a current rating of 4 Amp | 6 Amp and a voltage rating of 15 kVDC, this threaded coupling style plug bag assembly is compatible with LGH 1/2LI series receptacles and other specified models. The insulator material is silicone, and the contact properties include female BeCu contacts with a gold finish for optimal conductivity. Operating temperature ranges from -55 to 125 ºC, meeting stringent industry standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1/2LI
Specifications Mating Compatibility
Mates all series 737 receptacles and LGH 1/2LI Series receptacles. Also mates Reynolds C737 series RC1515, 2RC1515 and 13RC1515 receptacles; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
737
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
15 kVDC
Specifications Wire Type
Silicone
Wire Properties Accomodates Wire Diameter
0.150 in | 3.81 mm
Wire Properties Wire Pn
167-9193
