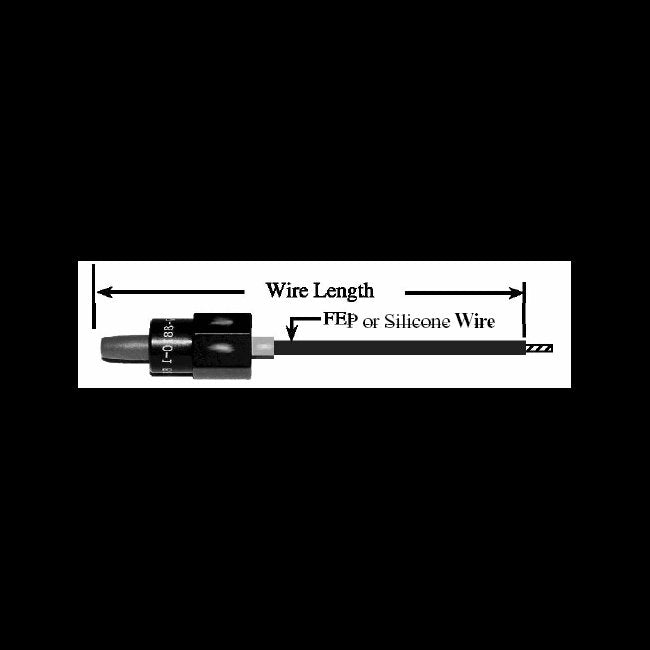

Series 830 Hi-Rel Single Pin Plug Bag Assembly
Series 830 Hi-Rel Single Pin Plug Bag Assembly
SKU:HIG-b85dd1
Series 830 Plug Bag Assembly - High voltage connector with 4-6 Amp current rating, wide temperature range, and versatile compatibility for demanding applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Series 830 Hi-Rel Single Pin Plug Bag Assembly
$39.99
Quantity: 1
Claim Your Seller Account
Series 830 Hi-Rel Single Pin Plug Bag Assembly
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 830 Plug Bag Assembly is a high-performance connector designed for demanding applications requiring up to 25 kVDC. With a current rating of 4-6 Amps, this connector operates in temperatures ranging from -55 to 125 °C, making it ideal for a wide range of environments. It mates seamlessly with all series 730 & 830 receptacles, LGH 1/2I series receptacles, and Reynolds C730 receipt axles, ensuring versatile compatibility. The threaded coupling style provides secure connections, while its plastic coupling nut material enhances durability. RoHS compliance and standard part designation further emphasize quality and reliability, meeting the rigorous standards essential for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all series 730 & 830 receptacles and all LGH 1/2I series receptacles. Also mates Reynolds C730 receipt axles RC1505,2RC1505 and 3RC1505: this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
830
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
