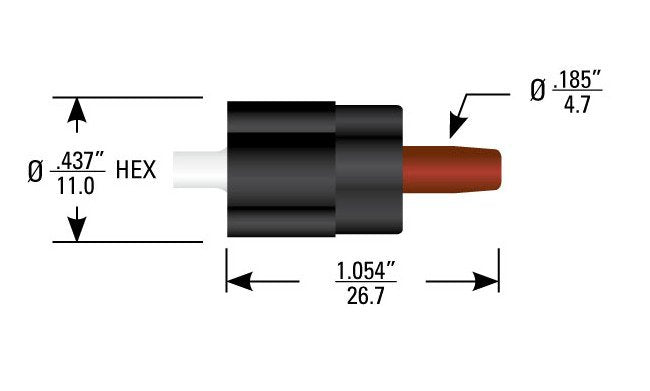

Series 830 Metal Coupling Nut Plug Kit for High Voltage Connectors
Series 830 Metal Coupling Nut Plug Kit for High Voltage Connectors
SKU:HIG-3958ca
Series 830 Metal Coupling Nut Plug Kit for high voltage single pin connectors, featuring threaded coupling, silicone insulator, and 4-6 Amp current rating.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Series 830 Metal Coupling Nut Plug Kit for High Voltage Connectors
$39.99
Quantity: 1
Claim Your Seller Account
Series 830 Metal Coupling Nut Plug Kit for High Voltage Connectors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 830 Metal Coupling Nut Plug Kit is designed for high-reliability single pin connectors rated at 10-25 kVDC. This non-standard part features a threaded coupling style and is constructed with a metal coupling nut for durability. With a current rating of 4-6 Amps, insulator material made of silicone, and compatibility with various receptacles including LGH 1/2I series, this plug kit ensures secure connections in high voltage applications. Operating temperature range of -55 to 125°C and tested voltage of 15 kVDC at 70,000 ft. make it ideal for demanding environments. Stay connected with confidence using this high-quality metal coupling nut plug kit.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Metal
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all series 730 & 830 receptacles and LGH 1/2I series receptacles. Also mates Reynolds C730 series RC1505,2RC1505 and 3RC1505 receptacles.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
830
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
FEP
Wire Properties Accomodates Wire Diameter
0.090 in
Wire Properties Wire Pn
167-9543
