Series C 727 High Voltage Cable Assembly
Series C 727 High Voltage Cable Assembly
SKU:HIG-e3ef65
Efficient Series C 727 Cable Assembly for high voltage applications, 25 kVDC, 10 A, plastic insulator, BeCu contacts, gold finish.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Series C 727 High Voltage Cable Assembly
$39.99
Quantity: 1
Claim Your Seller Account
Series C 727 High Voltage Cable Assembly
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 727 Cable Assembly Non-Positive Stop (washers) is a reliable and durable solution designed for high voltage applications. With a voltage rating of 25 kVDC and a current rating of 10 A, this double-ended plug cable assembly ensures superior performance in demanding environments. The insulator material is plastic, and it features BeCu contacts with a gold finish for excellent conductivity. Operating within a wide temperature range of -55 to 95 °C, and with an altitude/reduced pressure rating of 70,000 ft., this cable assembly meets the stringent standards required for high voltage connectors and cable assemblies in both consumer and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

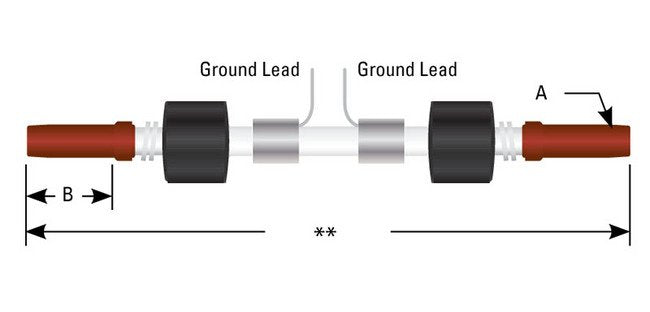

Dimensions A Diameter
.287 in | 7.2 mm
Dimensions B
1.69 in | 42.9 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1LI
Specifications Mating Compatibility
All C 727 series receptaclesAll series 727 receptaclesAll LGH 1LI series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 727
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
35 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
White 0.300 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
178-6147
