Series C 730 Receptacle - High Voltage Single Pin Connector
Series C 730 Receptacle - High Voltage Single Pin Connector
SKU:HIG-f287c2
High-quality Series C 730 Receptacle for 15 kVDC applications. Durable design with sealed receptacle for reliability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Series C 730 Receptacle - High Voltage Single Pin Connector
$49.99
Quantity: 1
Claim Your Seller Account
Series C 730 Receptacle - High Voltage Single Pin Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 730 Receptacle is a high-quality receptacle bag assembly designed for high voltage applications up to 15 kVDC. With a current rating of 10 A, operating temperature range of -55 to 95 °C, and sealed receptacle design, this standard part ensures reliable performance in demanding environments. Mating compatibility with various lead assemblies and LGH™ 1/2I compatibility make it versatile for different setups. The insulator material is durable plastic, and the contact properties feature BeCu with CRES hood and gold contact finish, guaranteeing secure connections for critical operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

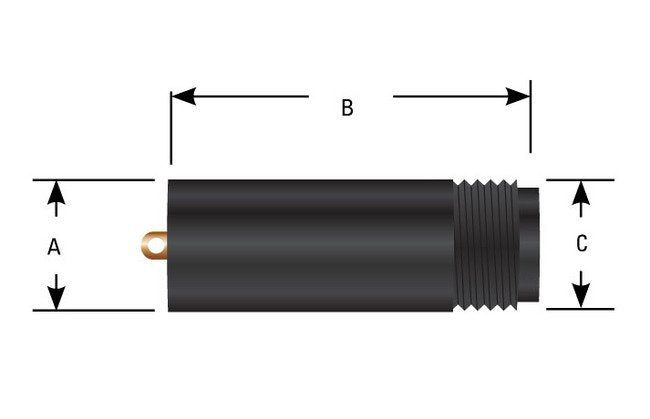

Dimensions A Diameter
.38 in | 9.6 mm
Dimensions B
.63 in | 15.7 mm
Dimensions C
.310 in | 7.9 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 730 lead assembliesAll series 730 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
C 730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC
Specifications Voltage Rating
10 kVDC
