Series C 737 High Voltage Receptacle Assembly
Series C 737 High Voltage Receptacle Assembly
SKU:HIG-41e473
Explore the Series C 737 High Voltage Receptacle Assembly for reliable sealing, durable BeCu contacts, and versatile compatibility.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Series C 737 High Voltage Receptacle Assembly
$49.99
Quantity: 1
Claim Your Seller Account
Series C 737 High Voltage Receptacle Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 737 Receptacle Assembly is designed for high voltage applications, featuring a current rating of 10 A and a voltage rating of 15 kVDC. With a sealed receptacle and insulator material made of plastic, this non-standard part is suitable for operating temperatures ranging from -55 to 95 degrees Celsius. Mating compatibility includes various lead assemblies, ensuring versatile connectivity. The threaded coupling style and gold-finished BeCu contacts enhance durability and performance, meeting the demanding requirements of high voltage setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

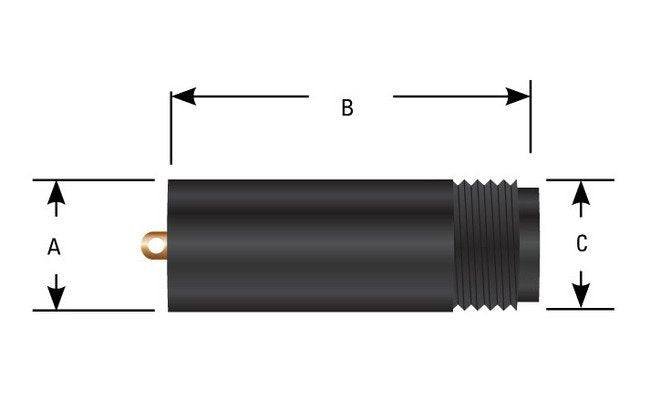

Dimensions A Diameter
.38 in | 9.6 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions C
.310 in | 7.9 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
C 737
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
