Series C 740 High Voltage Single Pin Connector
Series C 740 High Voltage Single Pin Connector
SKU:HIG-e47969
Series C 740 Receptacle - High voltage, 10A current, 40 kVDC voltage rating, durable threaded design for industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Series C 740 High Voltage Single Pin Connector
$49.99
Quantity: 1
Claim Your Seller Account
Series C 740 High Voltage Single Pin Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 740 Receptacle is a high-quality single-ended plug cable assembly designed for high voltage applications, featuring a current rating of 10 A and a voltage rating of 40 kVDC. With an altitude/rating pressure of 70,000 ft. and an operating temperature range from -55 to 95 ºC, this connector ensures reliable performance in demanding environments. Its threaded coupling style and brass solder flange with tin plate provide secure connections and durability. Compliant with RoHS standards and crafted with insulator material plastic and contact material BeCu with CRES hood, this connector meets the stringent requirements of institutional and government buyers, making it an ideal choice for critical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

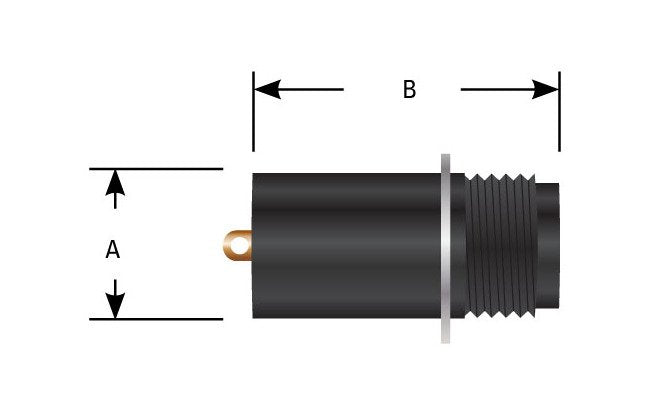

Dimensions A Diameter
.750 in | 19.0 mm
Dimensions B
1.94 in | 49.2 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 3I
Specifications Mating Compatibility
All C 740 lead assembliesAll LGH 3I series lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 740
Specifications Solder Flange
Brass with tin plate
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
50 kVDC
Specifications Voltage Rating
40 kVDC
