Series ECV Flangeless Wafer Check Valve 12"

Name: Series ECV Flangeless Wafer Check Valve 12"
Brand: World Wide Metric, Inc.
SKU: VAL-c5d3dc
Price: 599.99 USD
Availability: OutOfStock

SKU:VAL-c5d3dc

Efficient Series ECV Flangeless Wafer Check Valve for reliable back flow prevention in institutional settings.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

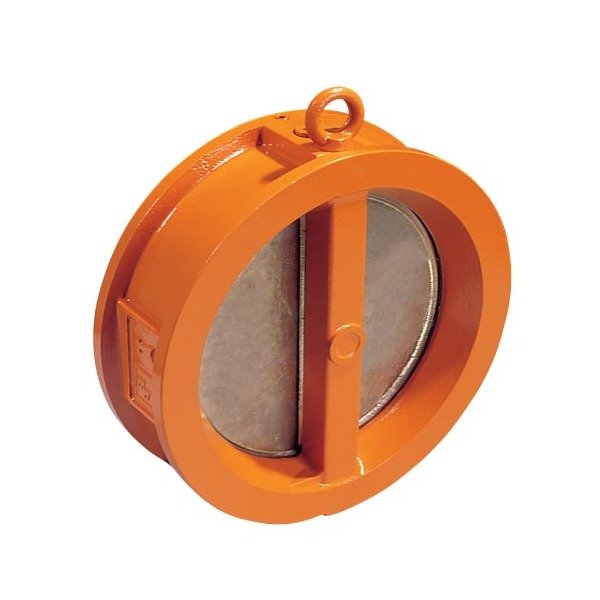

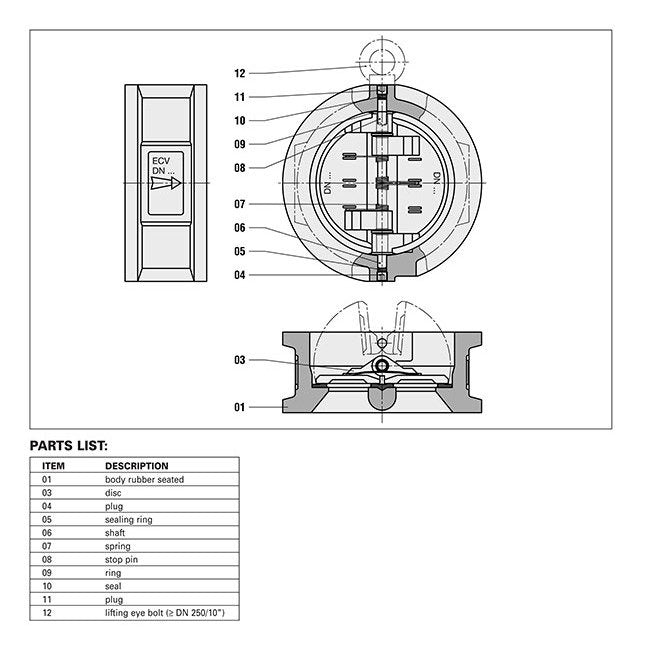

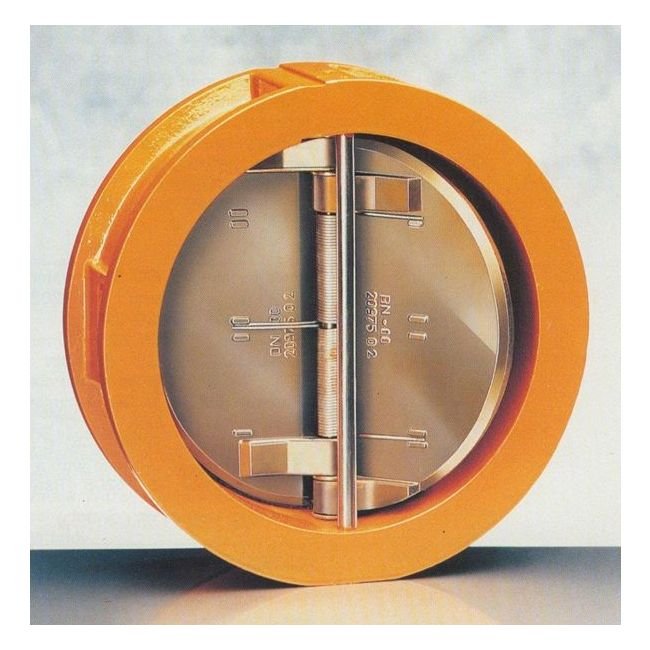

The Series ECV Flangeless Wafer Check Valve offers precise back flow prevention with a robust design suitable for institutional and industrial applications. Featuring a flangeless body, aluminum bronze disc, and stainless steel shaft, this valve ensures reliable performance under varying pressures. With approvals from GL and LRS, and compliant with ISO 5208 leakage standards, this valve guarantees uni-directional tight shut off, meeting stringent procurement requirements.

Product Specifications

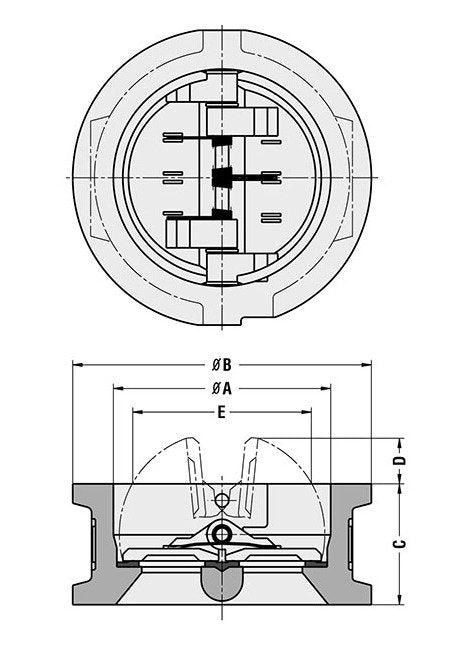

Specifications A

306 mm

Specifications Actuation Possibilities

Manual

Specifications Available Type Approvals

GL | LRS

Specifications Body Material

Aluminum Bronze | GGG40 Ductile Iron

Specifications B Diameter

375 mm

Specifications C

114 mm

Specifications D

97 mm

Specifications Disc Material

Aluminum Bronze

Specifications E

278 mm

Specifications Flange Connections

ANSI Class 150 | PN 10 | PN 16

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)

Specifications Size

DN300 - 12"

Specifications Stem Material

Stainless Steel 1.4401

Specifications Valve Shut Off Pressure

0.2-16 bar

Specifications Weight

36.0 kg
