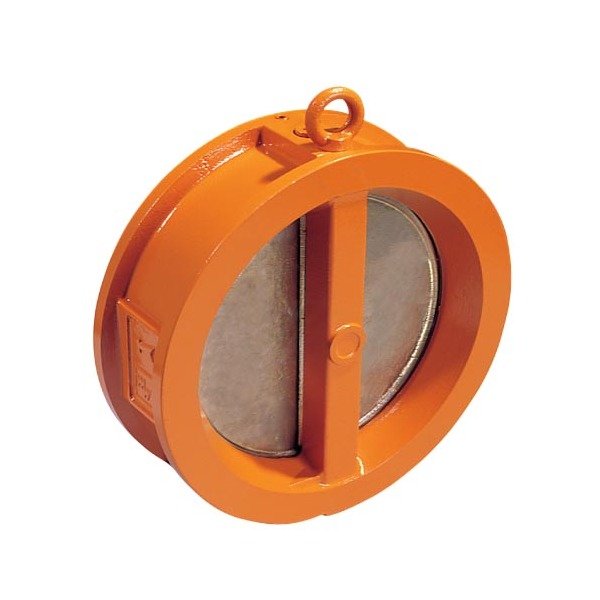

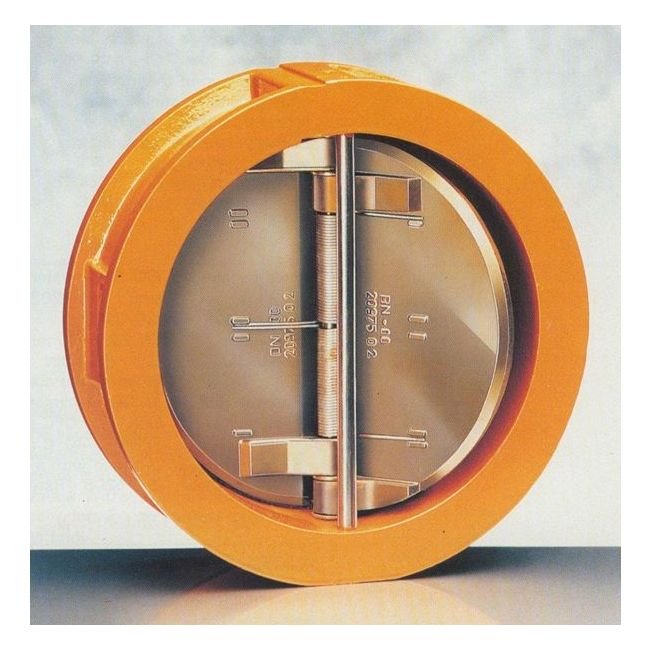

Series ECV Flangeless Wafer Check Valve - 24 inch, Aluminum Bronze

Name: Series ECV Flangeless Wafer Check Valve - 24 inch, Aluminum Bronze
Brand: World Wide Metric, Inc.
SKU: VAL-21ee49
Price: 849.99 USD
Availability: OutOfStock

SKU:VAL-21ee49

Reliable Series ECV Flangeless Wafer Check Valve - 24" for industrial backflow prevention with Aluminum Bronze construction.

$849.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series ECV Flangeless Wafer Check Valve is designed for backflow prevention, featuring a robust Aluminum Bronze body and disc with Stainless Steel shaft for durability. With a shut-off pressure range of 0.2-16 bar and meeting ISO 5208 leakage standards, this valve ensures reliable performance in industrial applications. Available with GL and LRS type approvals, it offers secure installation with ANSI Class 150 flange connections for streamlined operations.

Product Specifications

Specifications A

600 mm

Specifications Actuation Possibilities

Manual

Specifications Available Type Approvals

GL | LRS

Specifications Body Material

Aluminum Bronze | GGG40 Ductile Iron

Specifications B Diameter

733 mm

Specifications C

178 mm

Specifications D

216 mm

Specifications Disc Material

Aluminum Bronze

Specifications E

570 mm

Specifications Flange Connections

ANSI Class 150 | PN 10 | PN 16

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)

Specifications Size

DN600 - 24"

Specifications Stem Material

Stainless Steel 1.4401

Specifications Valve Shut Off Pressure

0.2-16 bar

Specifications Weight

150.0 kg

Series ECV Flangeless Wafer Check Valve - 24 inch, Aluminum Bronze
