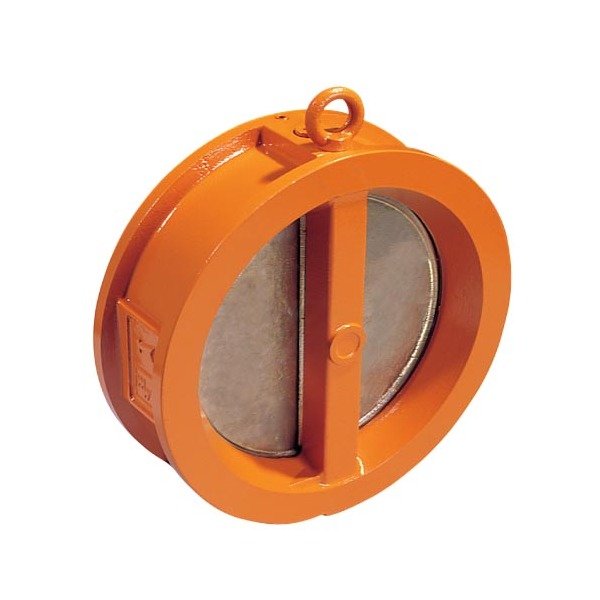

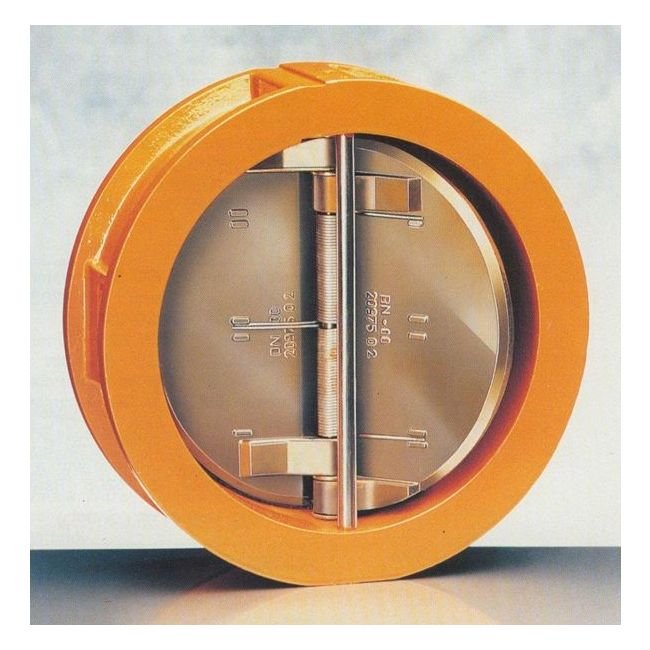

Series ECV Flangeless Wafer Check Valve - Aluminum Bronze
Series ECV Flangeless Wafer Check Valve - Aluminum Bronze
SKU:VAL-dfd231
Series ECV Flangeless Wafer Check Valve - Reliable backflow prevention with Aluminum Bronze body, ISO 5208 compliant.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Series ECV Flangeless Wafer Check Valve - Aluminum Bronze
$399.99
Quantity: 1
Claim Your Seller Account
Series ECV Flangeless Wafer Check Valve - Aluminum Bronze
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series ECV Flangeless Wafer Check Valve is designed for reliable backflow prevention, featuring a durable Aluminum Bronze body and disc. With ANSI Class 150, PN 10, or PN 16 flange connections and valve shut off pressure ranging from 0.2 to 16 bar, this valve ensures uni-directional tight shut off meeting ISO 5208 standards. Approved by GL and LRS, this valve is ideal for industrial applications requiring secure fluid control.
Product Specifications

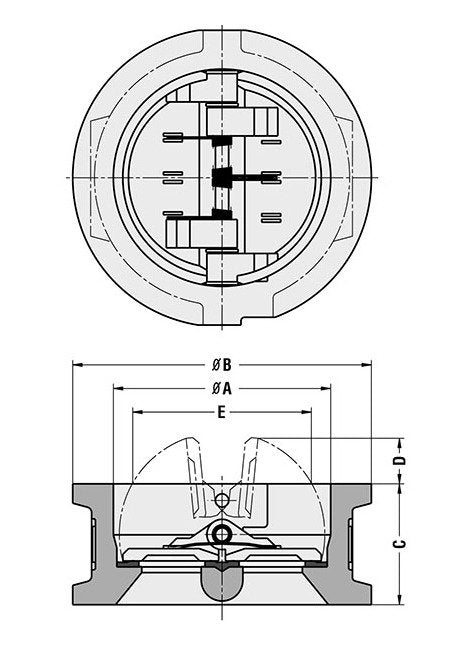

Specifications A
115 mm
Specifications Actuation Possibilities
Manual
Specifications Available Type Approvals
GL | LRS
Specifications Body Material
Aluminum Bronze | GGG40 Ductile Iron
Specifications B Diameter
158 mm
Specifications C
64 mm
Specifications D
25 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
90 mm
Specifications Flange Connections
ANSI Class 150 | PN 10 | PN 16
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN100 - 4"
Specifications Stem Material
Stainless Steel 1.4401
Specifications Valve Shut Off Pressure
0.2-16 bar
Specifications Weight
4.5 kg
