Series ECV Flangeless Wafer Check Valve - ANSI Class 150 PN 16
Series ECV Flangeless Wafer Check Valve - ANSI Class 150 PN 16
SKU:VAL-cd59b7
Ensure backflow prevention with our Series ECV Flangeless Wafer Check Valve - ANSI Class 150 PN 16. Reliable, durable, and efficient for industrial use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Series ECV Flangeless Wafer Check Valve - ANSI Class 150 PN 16
$899.99
Quantity: 1
Claim Your Seller Account
Series ECV Flangeless Wafer Check Valve - ANSI Class 150 PN 16
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

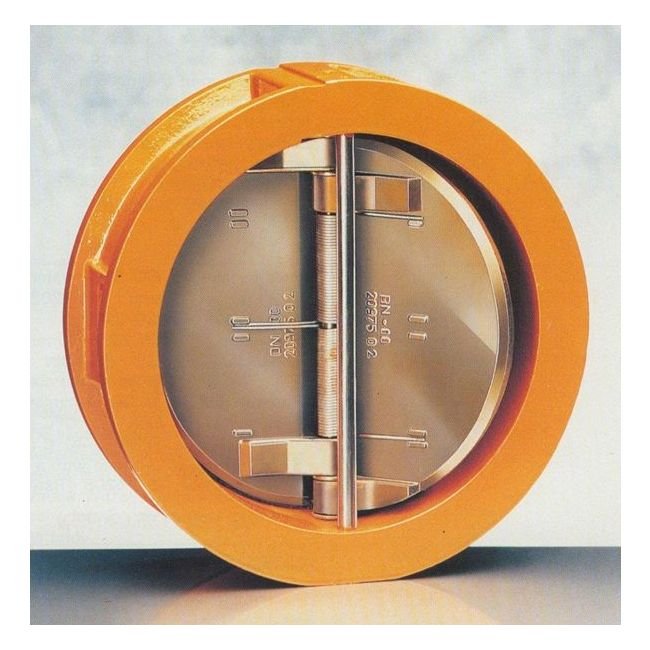

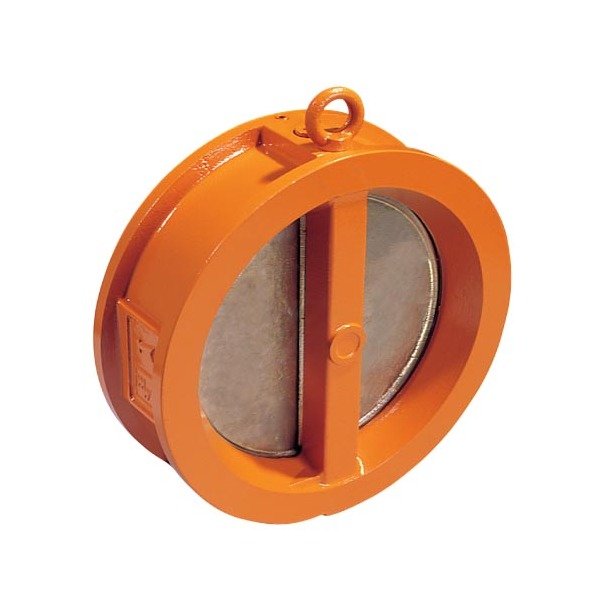

The Series ECV Flangeless Wafer Check Valve ensures reliable backflow prevention with a pressure range of 0.2 to 16 bar. Featuring a durable GGG40 Ductile Iron or Aluminum Bronze body, Aluminum Bronze disc, and Stainless Steel 1.4401 shaft, this valve guarantees uni-directional tight shut-off, meeting ISO 5208 standards. Ideal for industrial applications requiring secure shut-off and efficient flow control, this valve is available in sizes up to DN400 and has type approvals from GL and LRS.
Product Specifications

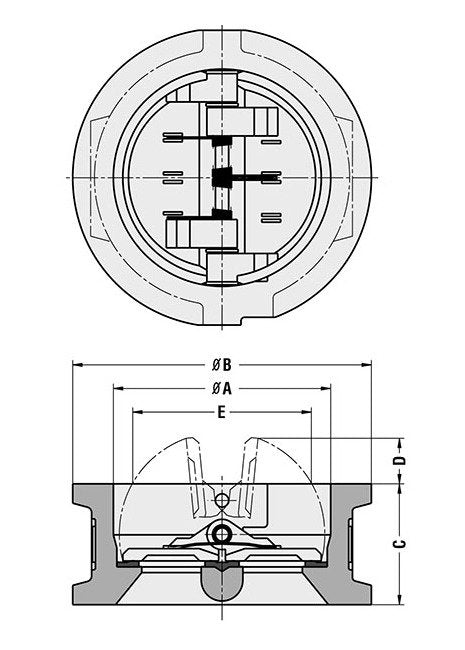

Specifications A
406 mm
Specifications Actuation Possibilities
Manual
Specifications Available Type Approvals
GL | LRS
Specifications Body Material
Aluminum Bronze | GGG40 Ductile Iron
Specifications B Diameter
475 mm
Specifications C
140 mm
Specifications D
147 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
381 mm
Specifications Flange Connections
ANSI Class 150 | PN 10 | PN 16
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN400 - 16"
Specifications Stem Material
Stainless Steel 1.4401
Specifications Valve Shut Off Pressure
0.2-16 bar
Specifications Weight
60.0 kg
