Series ECV Flangeless Wafer Check Valve - Backflow Preventing Butterfly Valve

Name: Series ECV Flangeless Wafer Check Valve - Backflow Preventing Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-05d6c6
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-05d6c6

Series ECV Flangeless Wafer Check Valve - Reliable backflow prevention with durable construction.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

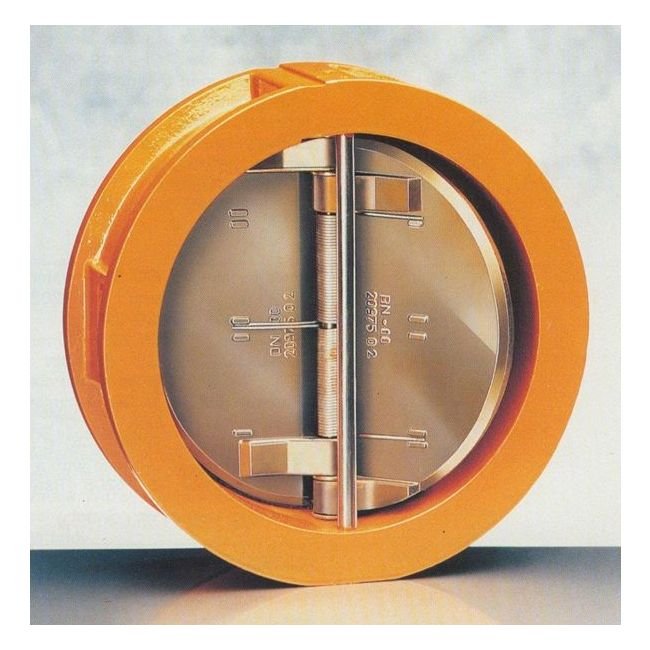

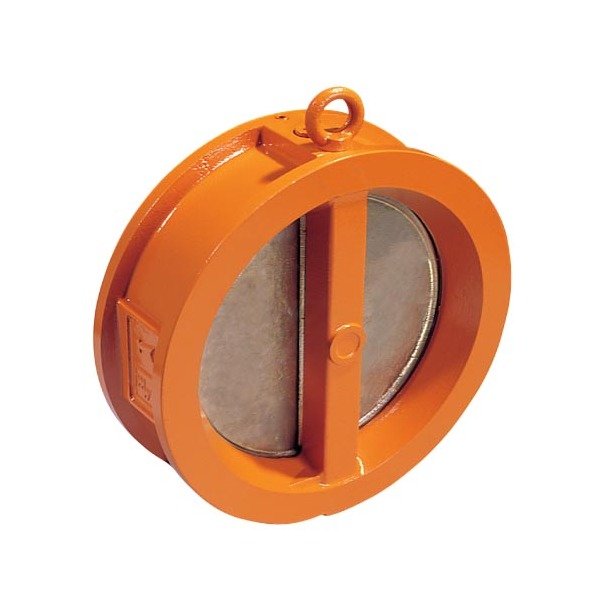

The Series ECV Flangeless Wafer Check Valve offers reliable backflow prevention with its flangeless design for easy clamping between flanges. Built to endure pressures ranging from 0.2 to 16 bar, this valve ensures a tight shut off with minimal leakage rates, meeting ISO 5208 standards. Constructed with durable materials like Aluminum Bronze, GGG40 Ductile Iron, and Stainless Steel 1.4401, it includes liners made of EPDM and NBR for enhanced performance and longevity.

Product Specifications

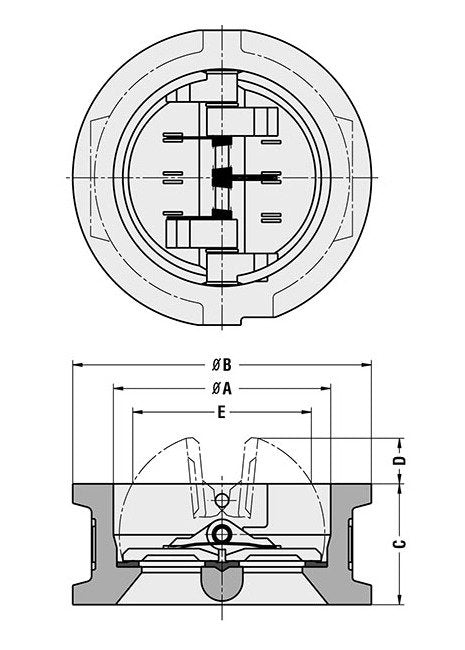

Specifications A

100 mm

Specifications Actuation Possibilities

Manual

Specifications Available Type Approvals

GL | LRS

Specifications Body Material

Aluminum Bronze | GGG40 Ductile Iron

Specifications B Diameter

140 mm

Specifications C

64 mm

Specifications D

16 mm

Specifications Disc Material

Aluminum Bronze

Specifications E

69 mm

Specifications Flange Connections

ANSI Class 150 | PN 10 | PN 16

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)

Specifications Size

DN80 - 3"

Specifications Stem Material

Stainless Steel 1.4401

Specifications Valve Shut Off Pressure

0.2-16 bar

Specifications Weight

3.5 kg

Series ECV Flangeless Wafer Check Valve - Backflow Preventing Butterfly Valve
