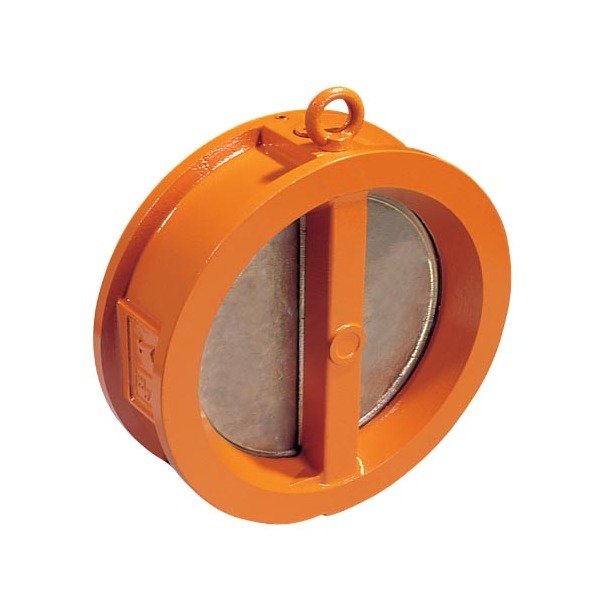

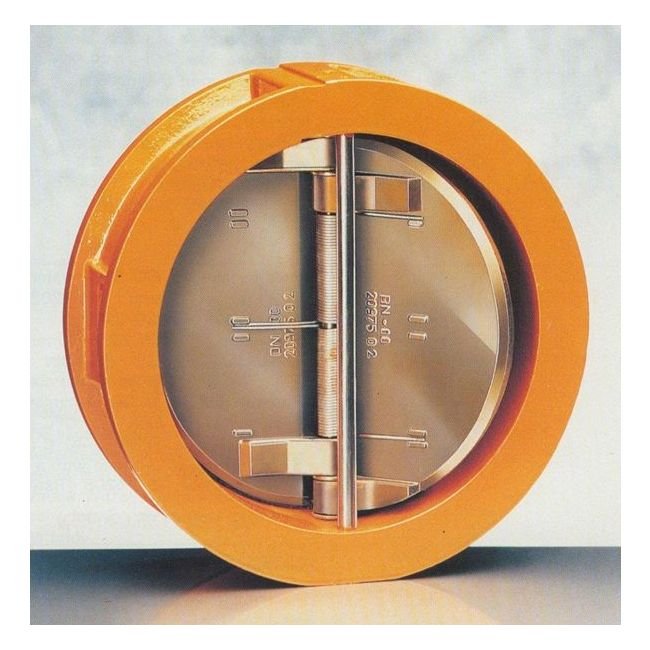

Series ECV Flangeless Wafer Check Valve - Backflow Prevention Valve

Name: Series ECV Flangeless Wafer Check Valve - Backflow Prevention Valve
Brand: World Wide Metric, Inc.
SKU: VAL-15e682
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-15e682

Ensure backflow prevention with precision using our Series ECV Flangeless Wafer Check Valve featuring sturdy construction and ISO 5208 Rate A leakage standard compliance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series ECV Flangeless Wafer Check Valve ensures reliable backflow prevention with its sturdy construction and precise shut-off pressure range of 0.2-16 bar. Designed for easy installation by clamping between flanges, this valve meets ISO 5208 Rate A leakage standards, offering uni-directional tight shut-off performance. With body options in Aluminum Bronze or GGG40 Ductile Iron and a disc crafted from Aluminum Bronze, coupled with a Stainless Steel shaft and NBR or EPDM liners, this valve is durable and suitable for various applications. Approved by GL and LRS, this valve guarantees quality and performance.

Product Specifications

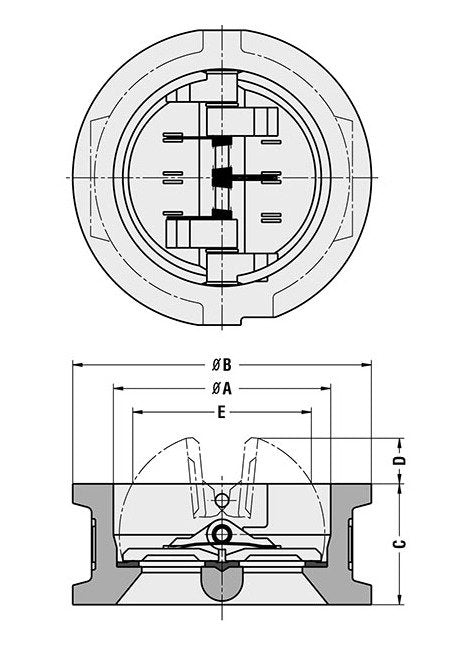

Specifications A

135 mm

Specifications Actuation Possibilities

Manual

Specifications Available Type Approvals

GL | LRS

Specifications Body Material

Aluminum Bronze | GGG40 Ductile Iron

Specifications B Diameter

188 mm

Specifications C

70 mm

Specifications D

34 mm

Specifications Disc Material

Aluminum Bronze

Specifications E

110 mm

Specifications Flange Connections

ANSI Class 150 | PN 10 | PN 16

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)

Specifications Size

DN125 - 5"

Specifications Stem Material

Stainless Steel 1.4401

Specifications Valve Shut Off Pressure

0.2-16 bar

Specifications Weight

6.5 kg

Series ECV Flangeless Wafer Check Valve - Backflow Prevention Valve
