Series ECV Flangeless Wafer Check Valve - Institutional Grade
Series ECV Flangeless Wafer Check Valve - Institutional Grade
SKU:VAL-da222b
Ensure backflow prevention with precision - Series ECV Flangeless Wafer Check Valve for institutions.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Series ECV Flangeless Wafer Check Valve - Institutional Grade
$289.99
Quantity: 1
Claim Your Seller Account
Series ECV Flangeless Wafer Check Valve - Institutional Grade
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

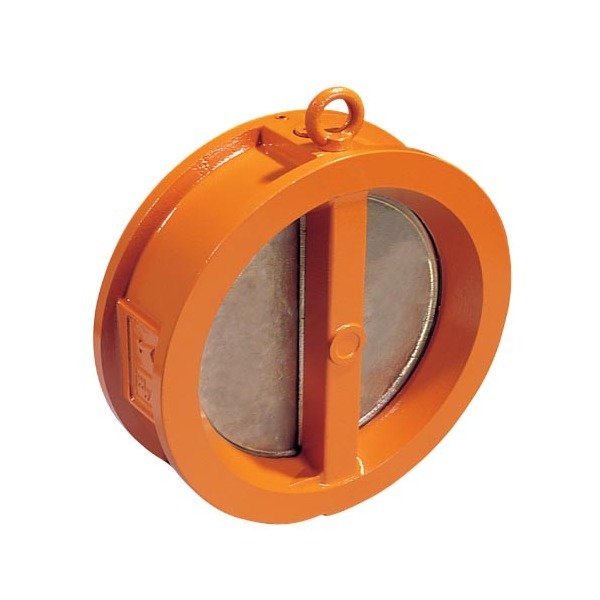

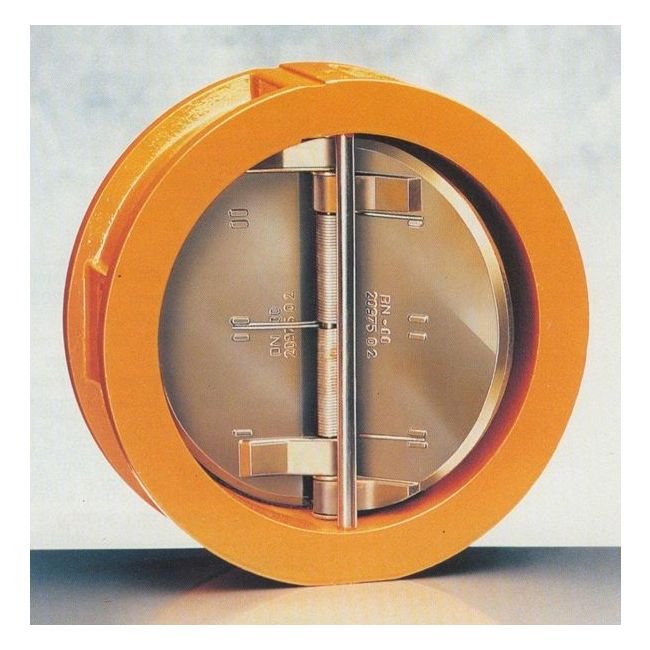

The Series ECV Flangeless Wafer Check Valve is engineered for optimal backflow prevention in institutional settings, featuring a durable design with body options in Aluminum Bronze and GGG40 Ductile Iron. With a valve shut off pressure ranging from 0.2 to 16 bar and approval from GL and LRS, this valve ensures reliable performance while meeting ISO 5208 leakage rate standards for uni-directional tight shut off. Ideal for applications requiring ANSI Class 150, PN 10, or PN 16 flange connections, this valve offers superior pressure management and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

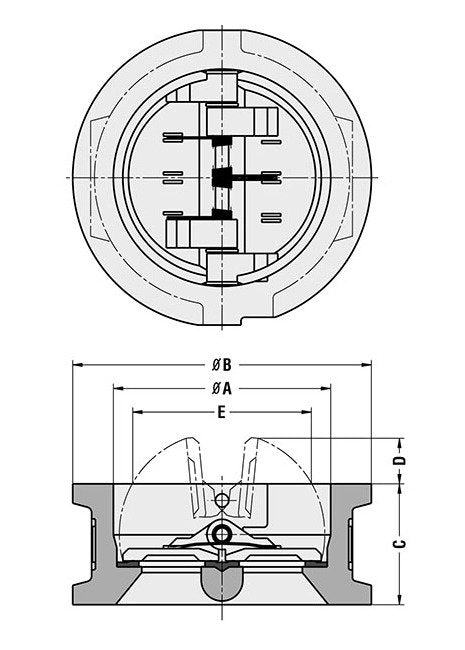

Specifications A
160 mm
Specifications Actuation Possibilities
Manual
Specifications Available Type Approvals
GL | LRS
Specifications Body Material
Aluminum Bronze | GGG40 Ductile Iron
Specifications B Diameter
212 mm
Specifications C
76 mm
Specifications D
43 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
136 mm
Specifications Flange Connections
ANSI Class 150 | PN 10 | PN 16
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN150 - 6"
Specifications Stem Material
Stainless Steel 1.4401
Specifications Valve Shut Off Pressure
0.2-16 bar
Specifications Weight
8.5 kg
