Series ECV Flangeless Wafer Check Valve - Institutional Grade
Series ECV Flangeless Wafer Check Valve - Institutional Grade
SKU:VAL-db7938
Ensure back flow prevention with our durable Series ECV Flangeless Wafer Check Valve. ANSI Class 150 compatible for reliable performance.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Series ECV Flangeless Wafer Check Valve - Institutional Grade
$749.99
Quantity: 1
Claim Your Seller Account
Series ECV Flangeless Wafer Check Valve - Institutional Grade
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series ECV Flangeless Wafer Check Valve ensures seamless back flow prevention with its flange connections compatible with ANSI Class 150, PN 10, PN 16 standards. Constructed with GGG40 Ductile Iron and Aluminum Bronze materials, this valve guarantees durability and reliability. Meeting ISO 5208 leakage rate specifications and offering manual actuation possibilities, it's a trusted choice for critical applications where uni-directional tight shut off is crucial.
Product Specifications

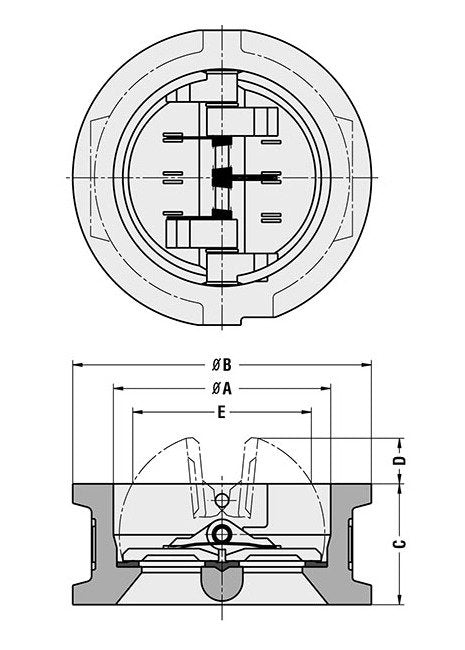

Specifications A
256 mm
Specifications Actuation Possibilities
Manual
Specifications Available Type Approvals
GL | LRS
Specifications Body Material
Aluminum Bronze | GGG40 Ductile Iron
Specifications B Diameter
325 mm
Specifications C
114 mm
Specifications D
72 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
225 mm
Specifications Flange Connections
ANSI Class 150 | PN 10 | PN 16
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN250 - 10"
Specifications Stem Material
Stainless Steel 1.4401
Specifications Valve Shut Off Pressure
0.2-16 bar
Specifications Weight
24.0 kg
