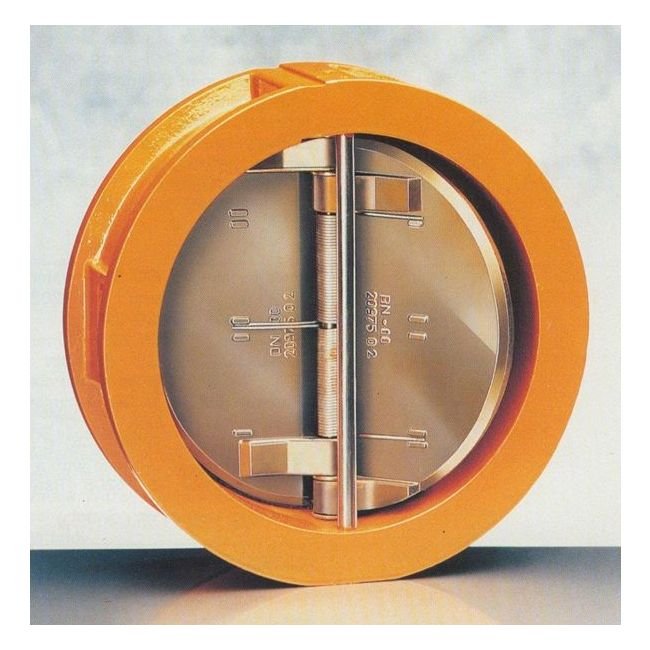

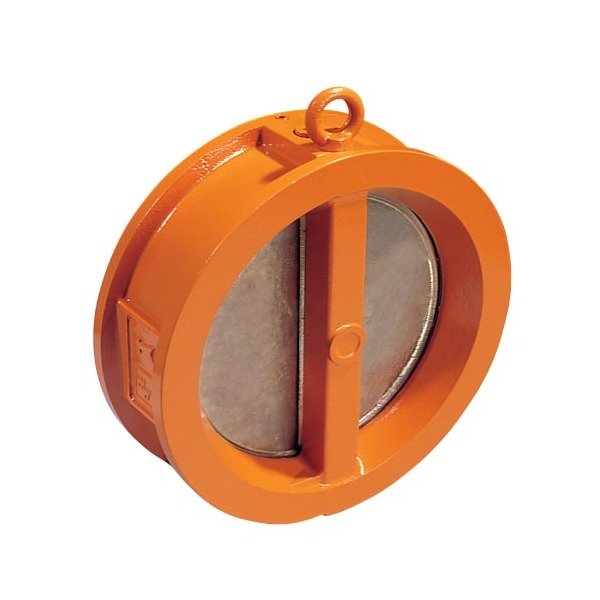

Series ECV Flangeless Wafer Check Valve - Institutional Grade

Name: Series ECV Flangeless Wafer Check Valve - Institutional Grade
Brand: World Wide Metric, Inc.
SKU: VAL-fa2049
Price: 1299.99 USD
Availability: OutOfStock

SKU:VAL-fa2049

Series ECV Flangeless Check Valve - Backflow Prevention with ISO Standards Compliance

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series ECV Flangeless Wafer Check Valve is expertly designed for superior backflow prevention, featuring a robust body made of GGG40 Ductile Iron or Aluminum Bronze. With valve shut off pressures ranging between 0.2 to 16 bar, it ensures uni-directional tight shut off as per ISO 5208 standards. This valve, meeting LRS and GL type approvals, guarantees reliable performance in institutional settings, offering a leak-free solution with NBR or EPDM liners.

Product Specifications

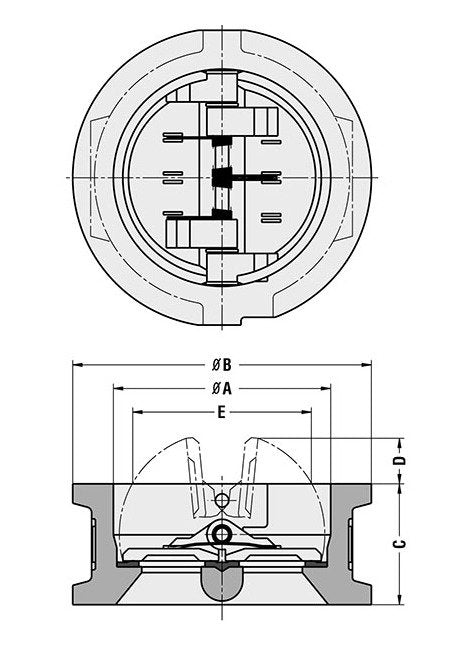

Specifications A

466 mm

Specifications Actuation Possibilities

Manual

Specifications Available Type Approvals

GL | LRS

Specifications Body Material

Aluminum Bronze | GGG40 Ductile Iron

Specifications B Diameter

554 mm

Specifications C

152 mm

Specifications D

152 mm

Specifications Disc Material

Aluminum Bronze

Specifications E

428 mm

Specifications Flange Connections

ANSI Class 150 | PN 10 | PN 16

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)

Specifications Size

DN450 - 18"

Specifications Stem Material

Stainless Steel 1.4401

Specifications Valve Shut Off Pressure

0.2-16 bar

Specifications Weight

85.0 kg

Series ECV Flangeless Wafer Check Valve - Institutional Grade
