Series ECV Flangeless Wafer Check Valve - Institutional Grade

Name: Series ECV Flangeless Wafer Check Valve - Institutional Grade
Brand: World Wide Metric, Inc.
SKU: VAL-491184
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-491184

Ensure backflow prevention precision with our Series ECV Check Valve - Ideal for critical institutional applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series ECV Flangeless Wafer Check Valve is designed for precise backflow prevention in institutional settings. Compliant with ISO 5208 standards for tight shut off, it offers a pressure shut off range of 0.2-16 bar and is available with GL and LRS type approvals. Crafted with robust materials including Aluminum Bronze and GGG40 Ductile Iron, this valve ensures reliability and longevity in demanding applications. The valve features ANSI Class 150, PN 10, and PN 16 flange connections, making it adaptable to various systems.

Product Specifications

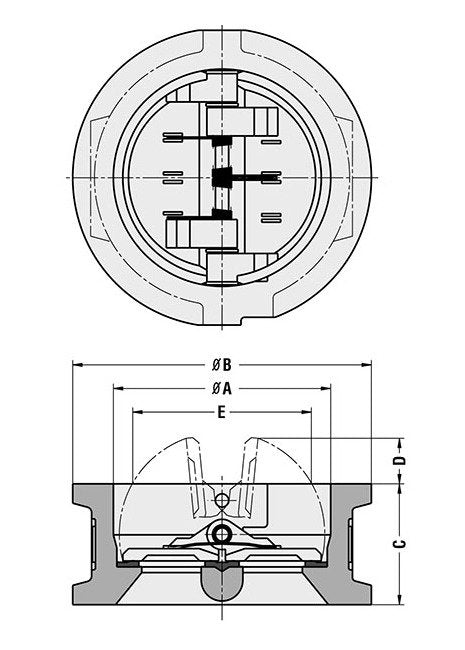

Specifications A

84 mm

Specifications Actuation Possibilities

Manual

Specifications Available Type Approvals

GL | LRS

Specifications Body Material

Aluminum Bronze | GGG40 Ductile Iron

Specifications B Diameter

118 mm

Specifications C

46 mm

Specifications D

14 mm

Specifications Disc Material

Aluminum Bronze

Specifications E

59 mm

Specifications Flange Connections

ANSI Class 150 | PN 10 | PN 16

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)

Specifications Size

DN65 - 2-1/2"

Specifications Stem Material

Stainless Steel 1.4401

Specifications Valve Shut Off Pressure

0.2-16 bar

Specifications Weight

1.8 kg
