Series EVFS Double Flanged Short Valve - ANSI 150 / JIS 10 / JIS 16 / PN 10 / PN 16 / PN 6 - DN550

Name: Series EVFS Double Flanged Short Valve - ANSI 150 / JIS 10 / JIS 16 / PN 10 / PN 16 / PN 6 - DN550
Brand: World Wide Metric, Inc.
SKU: VAL-08c01c
Price: 1450.99 USD
Availability: OutOfStock

SKU:VAL-08c01c

High-performance Series EVFS Double Flanged Short Valve for precise control, tight shut off, and durable performance. Size range DN40-DN2000.

$1,450.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

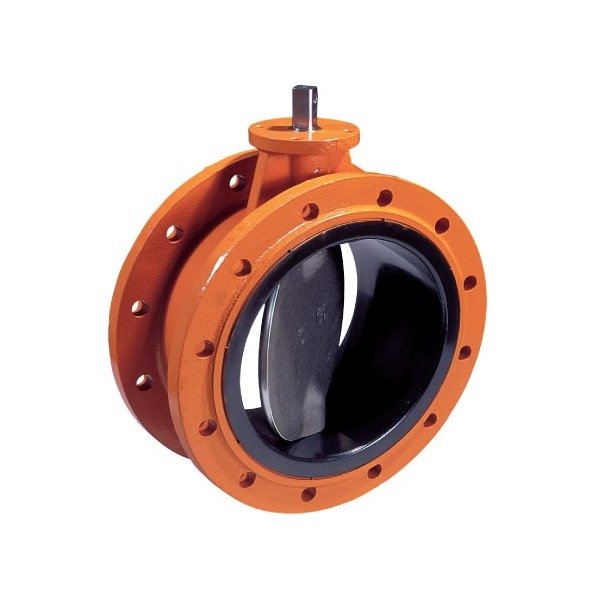

The Series EVFS Double Flanged Short Valve is a high-performance centric butterfly valve designed to meet the strictest standards of durability and reliability. With a Vulcanized Rubber Lining conforming to ISO 5752 / EN 558, this valve ensures a tight shut off with leakage rate compliant with ISO 5208, Rate A. Available in sizes DN40 to DN2000, it offers versatile actuation options including manual, electric, pneumatic, and hydraulic, making it suitable for various applications. The body and disc material options cater to different environmental requirements, while the top flange design according to ISO 5211 provides seamless integration with actuation systems.

Product Specifications

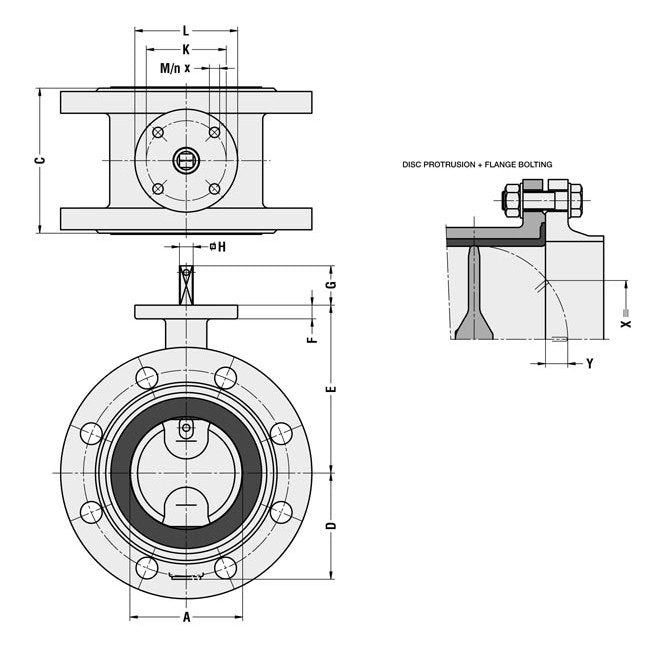

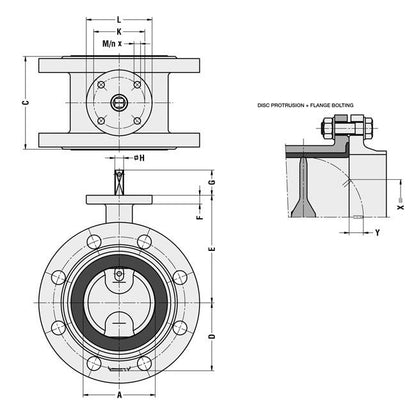

Specifications A

536 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications C

267 mm

Specifications D

395 mm

Specifications E

485 mm

Specifications F

25 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6

Specifications G

50 mm

Specifications H Diameter

40 mm

Specifications Iso 5211

F14

Specifications K

140 mm

Specifications L

175 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

17 mm

Specifications N Number Of Holes

Specifications Size

DN550 - 22" | 550 mm

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

260.0 kg
