Series EVFS Double Flanged Short Valve - Butterfly Valve
Series EVFS Double Flanged Short Valve - Butterfly Valve
SKU:VAL-39ab66
High-performance Series EVFS Double Flanged Short Valve for precise flow control in isolating and regulating applications. Sizes from 2" to 80".
Regular price
$2,500.00
Regular price
Sale price
$2,500.00
Unit price
per
Initiate Order
Series EVFS Double Flanged Short Valve - Butterfly Valve
$2,500.00
Quantity: 1
Claim Your Seller Account
Series EVFS Double Flanged Short Valve - Butterfly Valve
$2,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series EVFS Double Flanged Short Valve is a high-performance concentric butterfly valve designed for precise flow control. With a Vulcanized Rubber LiningFace to Face according to ISO 5752/EN 558, this valve ensures a tight shut off in isolating and regulating applications. Available in sizes DN40 - 2000 (2" - 80"), it offers multiple actuation possibilities including manual, electric, pneumatic, and hydraulic. The robust construction with body options like Ductile Iron, Cast Iron, Carbon Steel, Stainless Steel, and Bronze RG10 ensures durability and reliability in diverse industrial settings. Meeting ISO 5208 leakage rate standards and boasting approvals from KIWA, DVGW, LRS, and more, this valve is a trusted choice for critical installations.

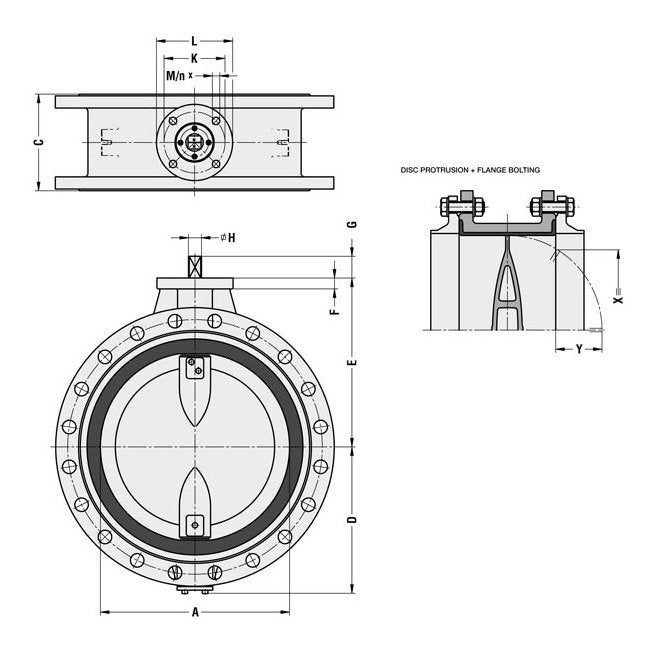

Product Specifications
Specifications A
1976 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications C
760 mm
Specifications D
1287 mm
Specifications E
1276 mm
Specifications F
50 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6
Specifications G
120 mm | 140 mm
Specifications H Diameter
105 mm | 120 mm
Specifications Iso 5211
F35 | F40
Specifications K
406 mm
Specifications L
475 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
37 mm
Specifications N Number Of Holes
8
Specifications Size
DN2000 - 80" | 2000 mm
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
4000.0 kg
Specifications X
1822 mm
Specifications Y
606 mm
