Series EVFS Double Flanged Short Valve - High-performance butterfly valve for industrial applications.

$2,500.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series EVFS Double Flanged Short Valve is a robust solution for industrial fluid control. This concentric butterfly valve, with a vulcanized rubber lining, complies with ISO 5752/EN 558 standards. Offering diverse actuation options such as manual, electric, pneumatic, and hydraulic, it caters to various operational needs. With a size range of DN40 - 2000 (2" - 80") and design pressure up to 16 Bar, this valve ensures reliable performance. The material options for body, disc, shaft, and liners provide flexibility for different applications, while its double flanged short type and top flange according to ISO 5211 enhance installation efficiency.

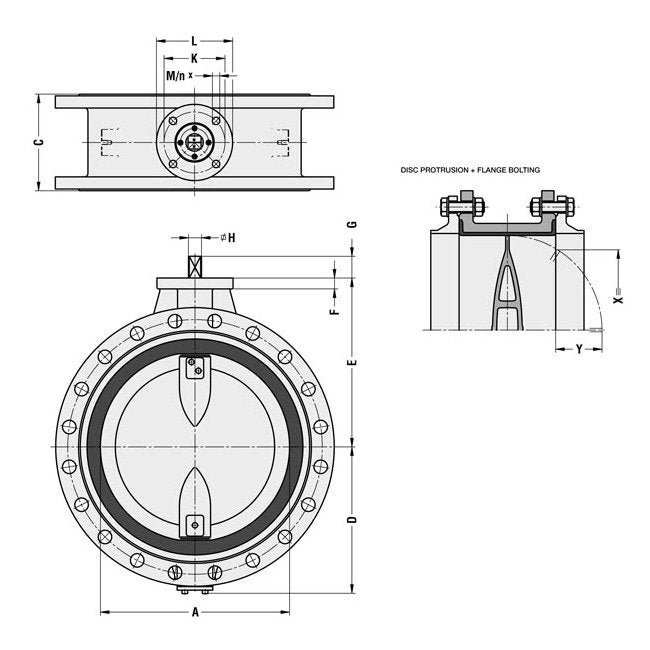

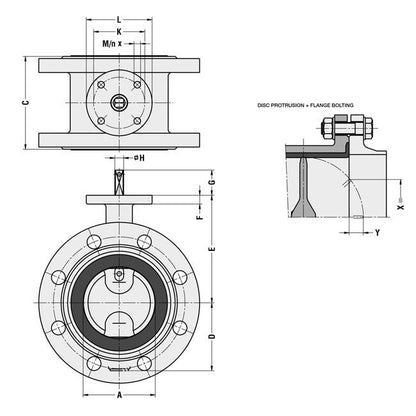

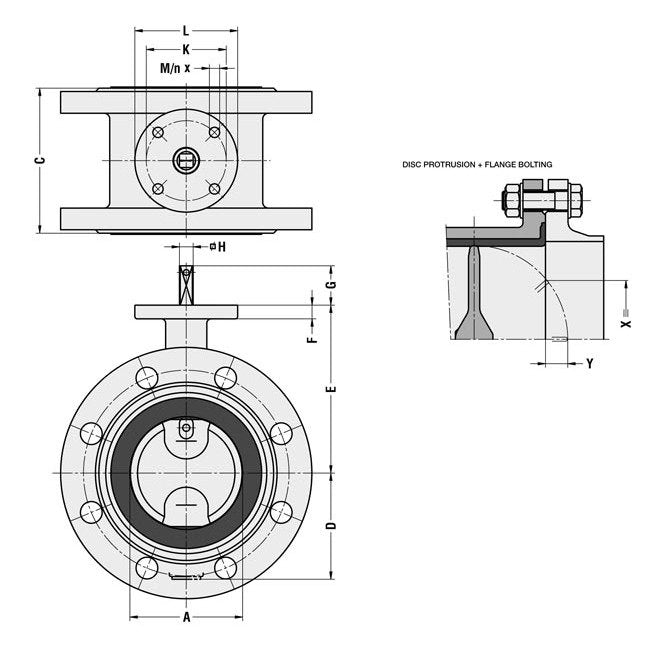

Product Specifications

Specifications A

1168 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications C

470 mm | 530 mm

Specifications D

870 mm

Specifications E

855 mm

Specifications F

35 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6

Specifications G

85 mm

Specifications H Diameter

75 mm

Specifications Iso 5211

F30 | F35

Specifications K

298 mm | 356 mm

Specifications L

415 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

21 mm | 31 mm

Specifications N Number Of Holes

Specifications Size

DN1200 - 48" | 1200 mm

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

1300.0 kg

Specifications X

1089 mm

Specifications Y

359 mm
