Series EVS Cast Iron Wafer Butterfly Valve

Name: Series EVS Cast Iron Wafer Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-94bbab
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-94bbab

Series EVS Cast Iron Butterfly Valve: Reliable performance for industrial applications. DN250, PN6, stainless steel components.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

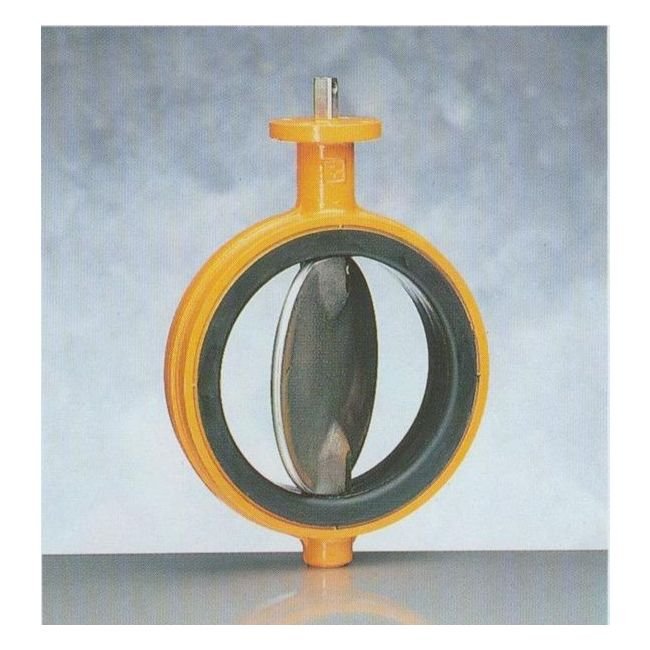

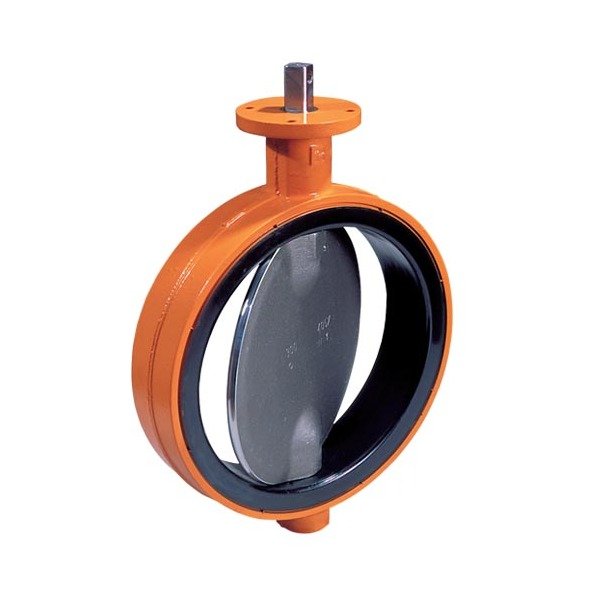

The Series EVS Cast Iron Wafer Butterfly Valve is a high-quality valve designed for reliable performance in industrial applications. This DN250 valve features a robust cast iron body, stainless steel shaft, and a stainless steel disc for durability and corrosion resistance. With PN6 flange connections and a valve shut off pressure ranging from 2.5 bar to 16 bar, this valve is suitable for isolating and regulating flow. The bare shaft design allows for manual actuation, making it versatile and easy to operate. Meeting DIN standards, this valve guarantees quality and compliance with industry requirements.

Product Specifications

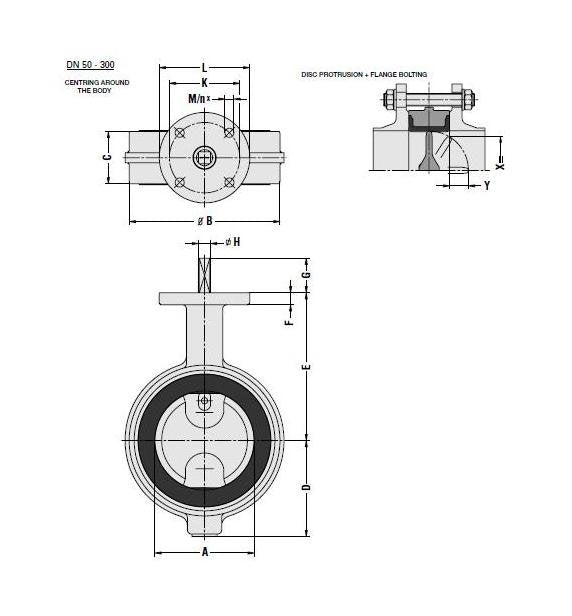

Specifications A

250 mm

Specifications Actuation Possibilities

Bare

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC

Specifications Body Material

Cast Iron

Specifications B Diameter

315 mm

Specifications C

68 mm

Specifications D

194 mm

Specifications Disc Material

Stainless Steel 1.4462

Specifications E

245 mm

Specifications F

15 mm

Specifications Flange Connections

PN 6

Specifications G

45 mm

Specifications H Diameter

24 mm

Specifications Iso 5211

F10

Specifications K

102 mm

Specifications L

125 mm

Specifications Liner Material

Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

11 mm

Specifications N Number Of Holes

Specifications Shaft Material

Stainless Steel 1.4462

Specifications Size

DN250 - 10" | 250 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

22.0 kg

Specifications X

241 mm

Specifications Y

91 mm
