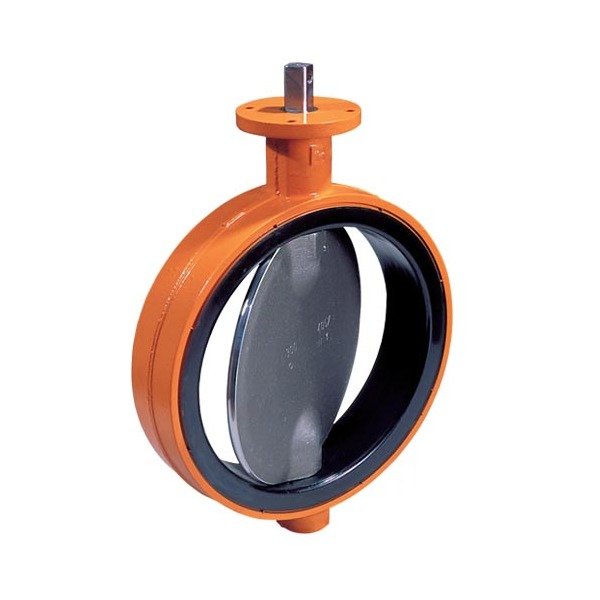

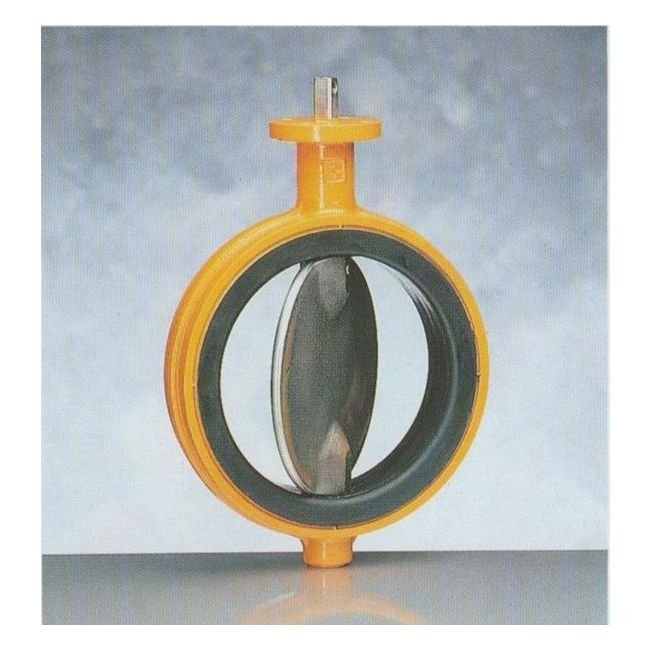

Series EVS Ductile Iron Wafer DIN Butterfly Valve - DN400 (16") PN10/16
Series EVS Ductile Iron Wafer DIN Butterfly Valve - DN400 (16") PN10/16
SKU:VAL-85bf68
Discover the industrial-grade Series EVS Wafer Short Valve for reliable flow control. DN400, PN10/16, Ductile Iron construction.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Series EVS Ductile Iron Wafer DIN Butterfly Valve - DN400 (16") PN10/16
$899.99
Quantity: 1
Claim Your Seller Account
Series EVS Ductile Iron Wafer DIN Butterfly Valve - DN400 (16") PN10/16
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series EVS Wafer Short Valve is a high-performance butterfly valve designed for industrial applications. With a Size of DN400 (16") and PN10/16 pressure ratings, this valve offers precise control and shut-off functionality. Crafted from Ductile Iron and featuring a Bare Shafted design, this valve ensures durability and reliable operation. The valve complies with DIN standards and is compatible with various actuation possibilities. Its robust construction, diverse material compatibility, and versatile shut-off pressure options make it ideal for isolating and regulating fluid flow in different settings.
Product Specifications

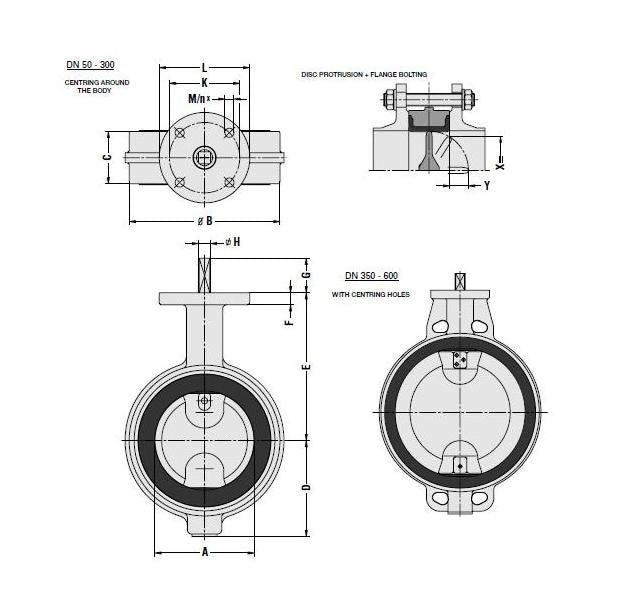

Specifications A
386 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
470 mm
Specifications C
102 mm
Specifications D
308 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
363 mm
Specifications F
25 mm
Specifications Flange Connections
PN 10 | PN 16
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN400 - 16" | 400 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
75.0 kg
Specifications X
373 mm
Specifications Y
142 mm
