Series EVTLS Ductile Iron Lug Type DIN Butterfly Valve, Size DN300
Series EVTLS Ductile Iron Lug Type DIN Butterfly Valve, Size DN300
SKU:VAL-c1ddec
Premium DN300 Ductile Iron Butterfly Valve for precise flow control. Compliant with DIN standards.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Series EVTLS Ductile Iron Lug Type DIN Butterfly Valve, Size DN300
$899.99
Quantity: 1
Claim Your Seller Account
Series EVTLS Ductile Iron Lug Type DIN Butterfly Valve, Size DN300
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

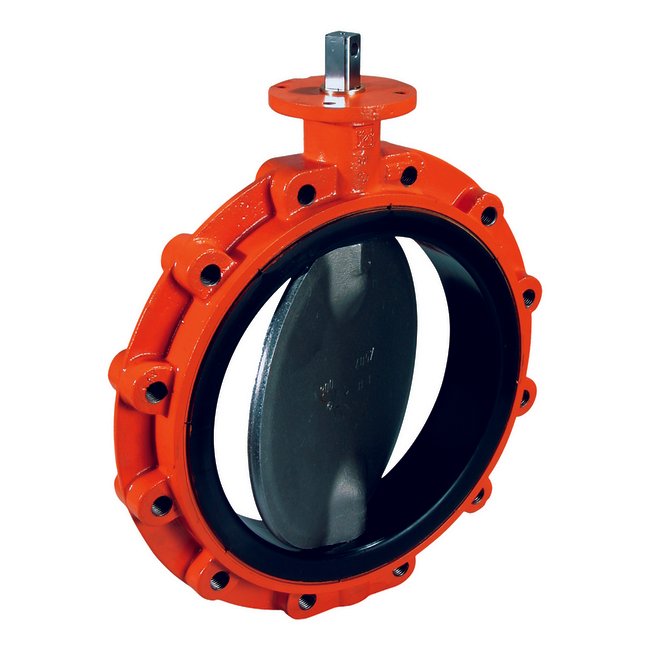

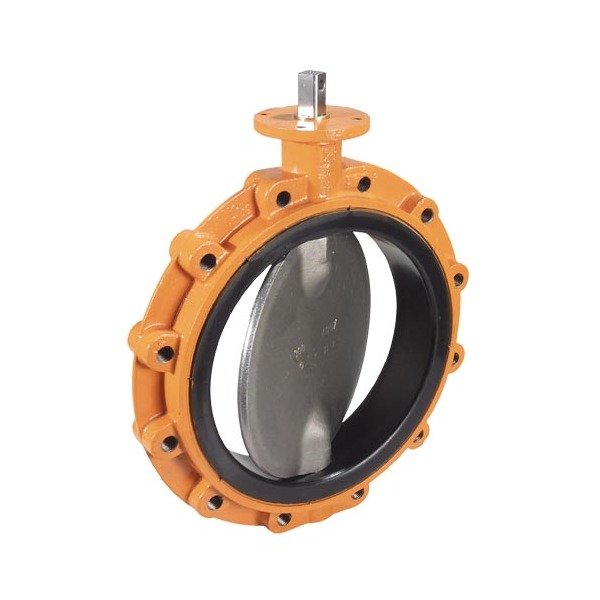

The Series EVTLS Bare Shafted Ductile Iron Lug Type DIN Butterfly Valve is a premium valve designed for precise control and durability. With a size of DN300 and a pressure rating of PN16, this valve offers exceptional performance in isolating and regulating flow. The valve features high-quality materials like Ductile Iron body and Stainless Steel shaft, ensuring longevity and reliability. Compliant with DIN standards, this valve is suitable for a wide range of applications in both consumer and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

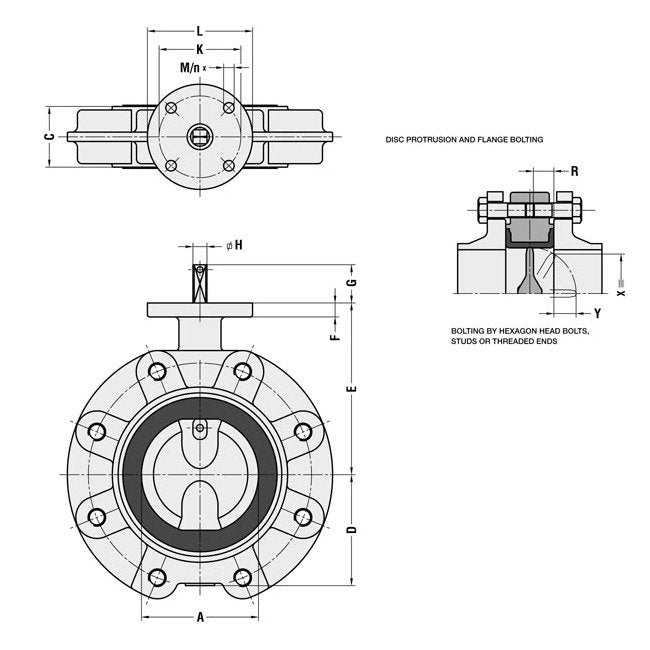

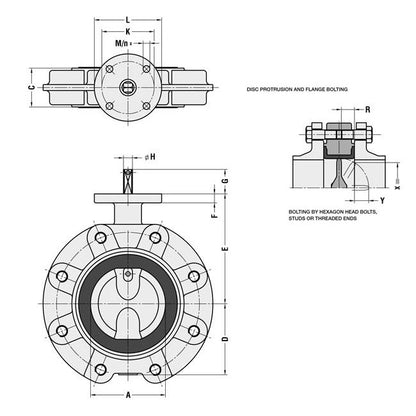

Specifications A
300 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
371 mm
Specifications C
78 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
PN 16
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications R Max
38 mm
Specifications R Min
33 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
36.0 kg
Specifications X
290 mm
Specifications Y
111 mm
