Serpentine Coils - SP Series
Serpentine Coils - SP Series
SKU:HEA-b675e7
High-performance SP Series Serpentine Coils for efficient heating & cooling. Customizable options available.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Serpentine Coils - SP Series
$399.99
Quantity: 1
Claim Your Seller Account
Serpentine Coils - SP Series
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

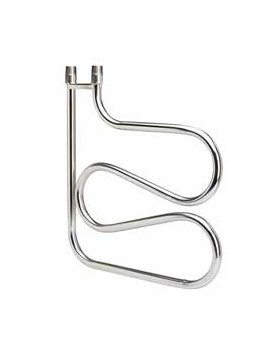

The SP Series Serpentine Coils are crafted from 316 Stainless Steel, offering superior chemical resistance for heating or cooling applications in various solutions. With a low profile design, these coils are ideal for installations in tanks with limited space, providing leak-free operation and efficient heat exchange across every inch of the coil surface. Designed with rugged 18-gauge metal tubing in steel, 316 stainless steel, and titanium, these coils ensure outstanding performance and durability. Additional options like mounting hangers, Zirconium, and Hastelloy C materials are available for customization. Process Technology manufactures these coils to meet the highest industry standards.
Product Specifications
Features And Benefits Features And Benefits

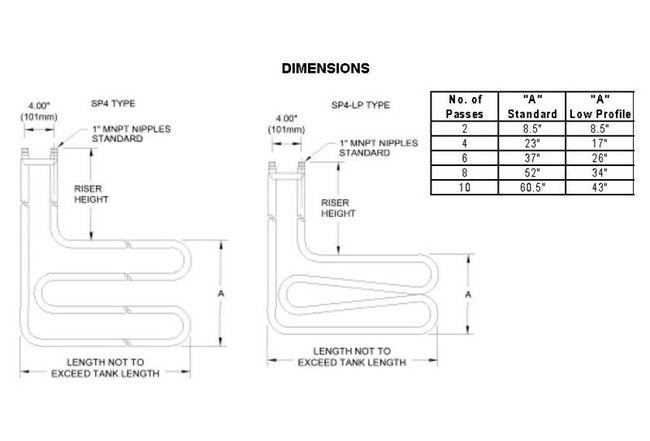

SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline solutions, acid solutions, and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material. RUGGED CONSTRUCTION: Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel and titanium. OUTSTANDING PERFORMANCE: Low profile design for installation in tanks with limited space. Offers low cost for heating surface area. Every inch of coil surface is active exchange area. LEAK-FREE OPERATION: Single point connections reduce thepotential for leaks and simplifies installation. SIZES: 2.6 square ft. to 10 square ft. of exchange area standard for 4-pass and 6-pass designs. OPTIONS AVAILABLE (consult factory): Mounting hangers. Special sizes in 2, 8 or 10-pass configurations. Heavier gauge tubing. Other riser lengths and configurations. Zirconium, Hastelloy C and other alloys available. Fluoropolymer coatings for protection at solution/atmospheric interface. Non-conductive isolator couplings. L-shaped configurations for bottom heat applications. High pressure ratings available (consult factory).
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 "

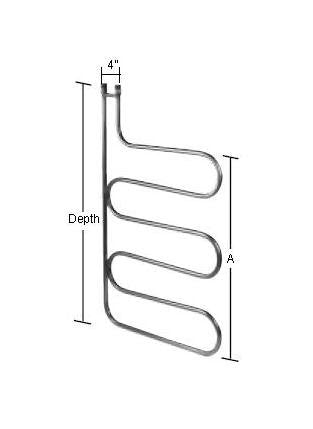

Specifications Depth
48 " | 1219 mm
Specifications Exchange Area
4.8 ft²
Specifications Inlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT
Specifications Length
30 " | 762 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Miscellaneous
-LP = low profile
Specifications Number Of Passes
6
Specifications Outlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT
Specifications Riser Height
-BR = bottom style coil, specify riser height | -R = specify custom riser height
Specifications Shipping Weight
14.0 Pound
Specifications Weight
14.0 lbs | 6.4 kg
