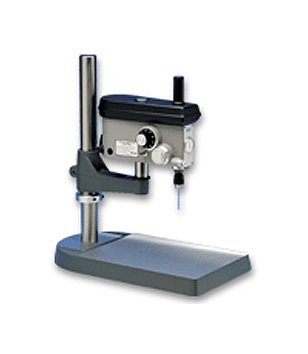

Servo 457mm Column Servo Elbow Drill Press with MT3 Chuck Spindle
Servo 457mm Column Servo Elbow Drill Press with MT3 Chuck Spindle
SKU:DRI-6324bc
Precision drill press with high accuracy down stop, variable speed spindle, and MT3 chuck for quick drill changes.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Servo 457mm Column Servo Elbow Drill Press with MT3 Chuck Spindle
$1,299.99
Quantity: 1
Claim Your Seller Account
Servo 457mm Column Servo Elbow Drill Press with MT3 Chuck Spindle
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Servo 457mm Column Servo Elbow Drill Press with MT3 Chuck Spindle is designed for precision production work in laboratories and prototypes. Featuring a high accuracy down stop, variable speed spindle, and keyless chuck for quick drill changes, this drill press offers exceptional performance and control. With a wide selection of bases and accessories, it is versatile for various applications. Compliant with federal procurement standards, this drill press meets stringent requirements for government and institutional buyers.
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)
Technical Specs Base
Fly-cut cast aluminum base with fine grain cast iron offset and elbow
Technical Specs Brands
Servo

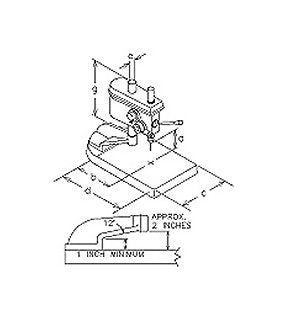

Technical Specs Column Diameter Through Elbow F
1.625 in | 41 mm
Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
18 in | 457 mm
Technical Specs Footprint Depth
18.5 in | 470 mm
Technical Specs Footprint Width
10.5 in | 267 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
16.5 in | 419 mm
Technical Specs Mt3 Spindle Weldon
Chuck
Technical Specs Overall Height
29.5 in | 749 mm
Technical Specs Throat Depth B Spindle Cl To Column
9.4 in | 239 mm
Technical Specs Weight
40 lb | 18.1 kg
Technical Specs Working Base Area Depth D
13.25 in | 324 mm
Technical Specs Working Base Area Width C
9.75 in | 248 mm
