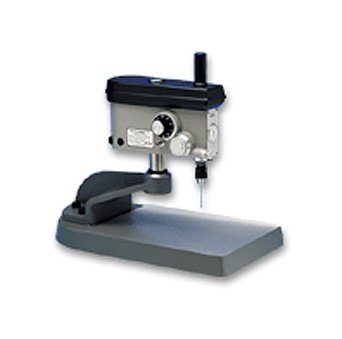

Servo 7.5-Inch Column Drill Press with Chuck Spindle
Servo 7.5-Inch Column Drill Press with Chuck Spindle
SKU:DRI-1ab792
Precision drill press with high accuracy and versatility for labs and precision production.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Servo 7.5-Inch Column Drill Press with Chuck Spindle
$749.99
Quantity: 1
Claim Your Seller Account
Servo 7.5-Inch Column Drill Press with Chuck Spindle
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Servo 7.5-Inch Column Drill Press is designed for precise drilling needs in laboratories, prototypes, and precision production environments. With a maximum distance of 6 inches from chuck to base, a throat depth of 8.5 inches, and a sturdy cast aluminum base with fine grain cast iron offset, this drill press offers reliability and accuracy for intricate projects. It features a high-precision down stop for depth control, variable speed spindle ranging from 200 to 20,000 RPM, and a quill travel of 1.5 inches. The drill press includes a keyless Albrecht chuck for quick drill changes, a wide selection of bases, and accessories, making it versatile and efficient for various drilling applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)

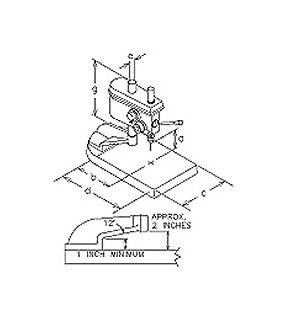

Technical Specs Base
Fly-cut cast aluminum base with fine grain cast iron offset and elbow
Technical Specs Brands
Servo
Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
7.5 in | 191 mm
Technical Specs Footprint Depth
18.5 in | 470 mm
Technical Specs Footprint Width
10.5 in | 267 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
6 in | 152 mm
Technical Specs Mt3 Spindle Weldon
Chuck
Technical Specs Overall Height
18 in | 457 mm
Technical Specs Throat Depth B Spindle Cl To Column
8.5 in | 216 mm
Technical Specs Weight
27 lb | 12.2 kg
Technical Specs Working Base Area Depth D
13.25 in | 324 mm
Technical Specs Working Base Area Width C
9.75 in | 248 mm
