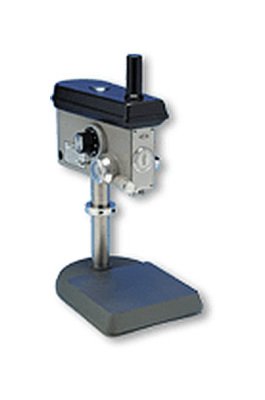

Servo Chuck Spindle 12in Servo Standard Drill Press

Name: Servo Chuck Spindle 12in Servo Standard Drill Press
Brand: Penn Tool Co.
SKU: DRI-1a5302
Price: 879.99 USD
Availability: OutOfStock

SKU:DRI-1a5302

Achieve precision and versatility with the Servo Chuck Spindle 12in Servo Standard Drill Press. Ideal for laboratories, prototypes, and production work.

$879.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Servo Chuck Spindle 12in Servo Standard Drill Press is designed for precision work in laboratories, prototypes, and production settings. This model features inch and metric versions, a high-accuracy downstop for depth control, variable speed spindle ranging from 200 to 20,000 RPM, and a quill travel of 1.5 inches. With a sturdy cast iron base, wide drill capacity, and options for different chuck or collet versions, this drill press offers exceptional precision and versatility for various drilling needs.

Product Specifications

Features Features

Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002"" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change; standard 0-1/8"" / 0-3 mm; optional 0-1/16"" / 0-1.5 mmWW collet versions for less run out and improved accuracy; 0.0039""-0.252"" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control (0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16"" in inconel to 1/8"" in steel to 3/16"" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps (220V/115V transformer available)

Technical Specs Base

Fine grain, ground cast iron base

Technical Specs Brands

Servo

Technical Specs Chuck Or Collet

Chuck

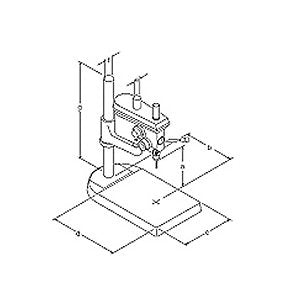

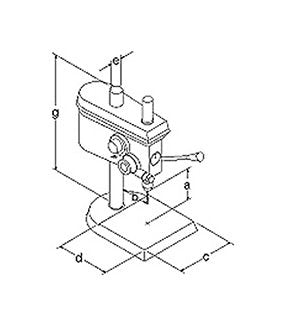

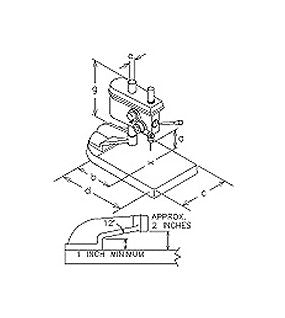

Technical Specs Column Diameter Through Head E

1.25 in | 31 mm

Technical Specs Column Length G

12 in | 305 mm

Technical Specs Footprint Depth

11.8 in | 299 mm

Technical Specs Footprint Width

7.15 in | 181 mm

Technical Specs Maximum Distance Of Chuckcollet To Basea

6 in | 152 mm

Technical Specs Overall Height

18 in | 457 mm

Technical Specs Throat Depth B Spindle Cl To Column

3.5 in | 89 mm

Technical Specs Weight

21.0 lb | 9.5 kg

Technical Specs Working Base Area Depth D

6.5 in | 152 mm

Technical Specs Working Base Area Width C

6.5 in | 165 mm

Servo Chuck Spindle 12in Servo Standard Drill Press
