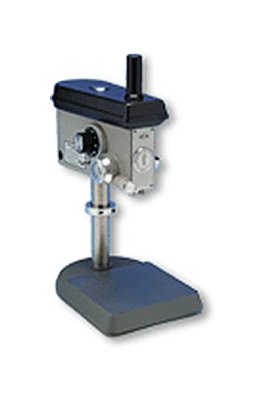

Servo Chuck Spindle 19 Inch Column Drill Press
Servo Chuck Spindle 19 Inch Column Drill Press
SKU:DRI-88bd2b
Achieve precision and efficiency with the Servo Chuck Spindle Drill Press; variable speed, high accuracy, and versatile chuck options for professional results.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Servo Chuck Spindle 19 Inch Column Drill Press
$1,299.99
Quantity: 1
Claim Your Seller Account
Servo Chuck Spindle 19 Inch Column Drill Press
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Servo Chuck Spindle 19 Inch Column Drill Press is meticulously crafted for laboratory, prototype, and precision production applications. With versatile chuck options, precise inch and metric calibration, a variable speed spindle ranging from 200 to 20,000 RPM, and high accuracy in depth control down to 0.001", this drill press ensures exceptional performance. Its sturdy fine grain, ground cast iron base provides stability, while the Keyless Albrecht chuck and WW collet versions offer quick drill change and improved accuracy. Meeting the demands of high-precision tasks, this drill press is a reliable companion for professionals who prioritize accuracy and efficiency.
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)
Technical Specs Alternating Electrical Current
2 amp | 115 V | 50/60 Hz
Technical Specs Base
Fine grain, ground cast iron base
Technical Specs Brands
Servo
Technical Specs Chuck Or Collet
Chuck
Technical Specs Collet Sizes
0.0039 to 0.252 in | 0.1 to 6.4 mm

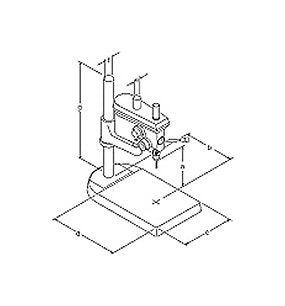

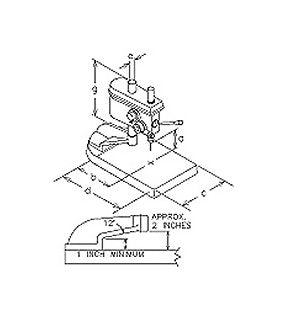

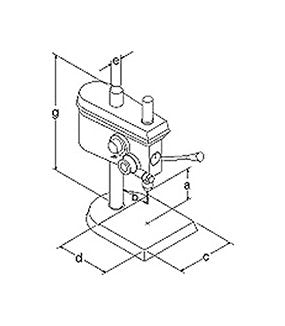

Technical Specs Column Diameter Through Elbow F
- in
Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
19 in | 483 mm
Technical Specs Drill Capacity In Aluminum
3/16 in
Technical Specs Drill Capacity In Inconel
1/16 in
Technical Specs Drill Capacity In Steel
1/8 in
Technical Specs Drill Holes Diameter
0.002 in | 0.05 mm
Technical Specs Footprint Depth
11.8 in | 299 mm
Technical Specs Footprint Width
7.15 in | 181 mm
Technical Specs Graduated Dial Gauge
0.001 in | 0.05 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
13 in | 330 mm
Technical Specs Overall Height
25 in | 635 mm
Technical Specs Quill Travel Stroke
1.5 in | 38.1 mm
Technical Specs Spindle Runout Tir
0.0002 in | 0.005 mm
Technical Specs Throat Depth B Spindle Cl To Column
3.5 in | 89 mm
Technical Specs Variable Spindle Speed
200 to 20,000 rpm
Technical Specs Weight
21.0 lb | 9.5 kg
Technical Specs Working Base Area Depth D
6.5 in | 152 mm
Technical Specs Working Base Area Width C
6.5 in | 165 mm
