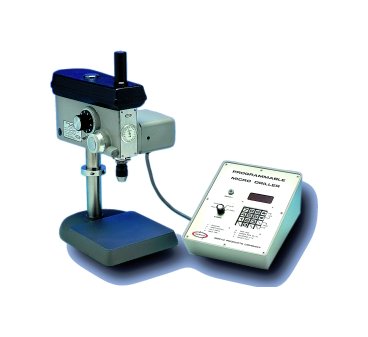

The Servo Microprocessor Controlled Quill Feed Drill Press, equipped with the Model 708, offers precise and automated hole drilling capabilities. Easily program and execute operations with features like programmable dwell, chip clearing, and variable peck depth. With a quill travel of 1.4 inches and a maximum force of 35 lbs, this drill press ensures accuracy and efficiency in deep hole drilling tasks. Ideal for peck drilling, reaming cycles, and routine drilling, this high-quality machine simplifies complex drilling processes.
Product Specifications
Features Features
Program and run all operations from the controller keyboardProgrammable dwell, chip clearing height and variable peck depthPeck Steps: 0.001â-1.4â / 0.02mm-35.6mmHole depth accuracy: +0.001â / 0.02mmQuill Travel: 1.4â / 35.6mmMaximum quill force: 35 Lbs. / 16 KgFeed rates: 0.01-30 IPM / 0.250750mm/minOptional foot switch (Model 710)
