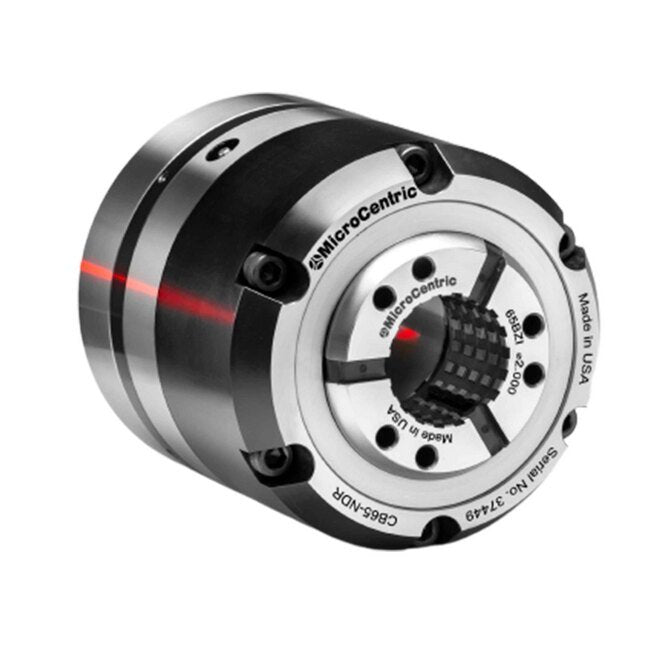

Upgrade your machining operations with the CB-NDR Dead Length Collet Chucks designed specifically for servo stop bar loaders. Featuring a patented Pull to Close design, these chucks ensure precise clamping without any pull back force, preventing bar displacement. The radial adjusting screws enable fine-tuning within .0002 inches, guaranteeing exceptional accuracy. With a lubricated-for-life design, minimal maintenance is required, while all components are hardened for longevity. Maximize efficiency and accuracy in your machining processes with the CB-NDR Dead Length Collet Chucks.
Product Specifications
Specifications Accuracy
.0008 in | 0.020 mm

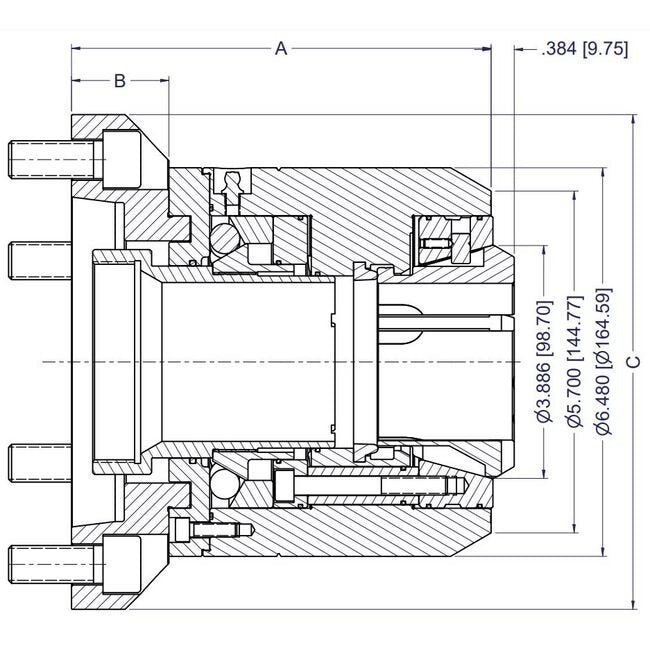

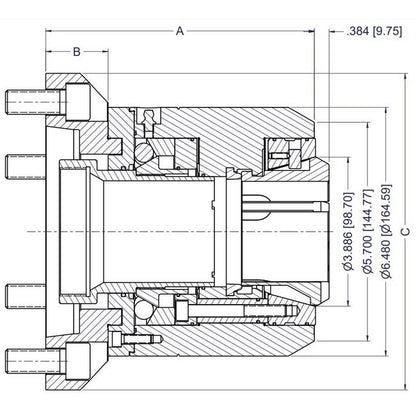

Specifications A Dimension
7 in | 177.8 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications C Dimension
8.250 in | 209.6 mm
Specifications Item No
15 065 257
Specifications Linear Chuck Stroke
.480 in | 12.2 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Weight
37.9 lb | 17.2 kg
Standard Equipment 0
CB-NDR chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with purchase order.
