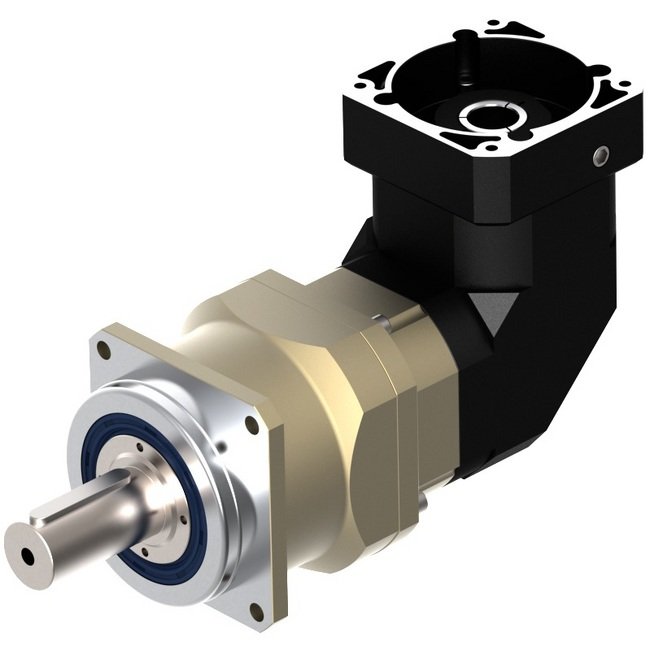

Servobox SFL180 2-Stage Planetary Reducer Gearbox
Servobox SFL180 2-Stage Planetary Reducer Gearbox
SKU:PLA-21bdca
High precision and torque with low noise and backlash. Ideal for demanding applications.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Servobox SFL180 2-Stage Planetary Reducer Gearbox
$2,399.99
Quantity: 1
Claim Your Seller Account
Servobox SFL180 2-Stage Planetary Reducer Gearbox
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Servobox SFL180 2-Stage Planetary Reducer Gearbox from Pelonis Technologies offers precision and reliability for a wide range of applications. With a backlash of ≤ 3 arc·min, the helical gears reduce vibration and noise, ensuring quiet operation. This gearbox features high rigidity and torque thanks to integrant needle roller bearings and a one-piece construction design. The dual tapper bearing provides high load-bearing capacity, while full needle roller bearings enhance structural rigidity and service life. The collet locking mechanism ensures concentricity and balance, with no backlash during high-speed operations. This gearbox is optimized for efficiency, durability, and smooth performance.
Ready to Grow Without Cash Flow Constraints?

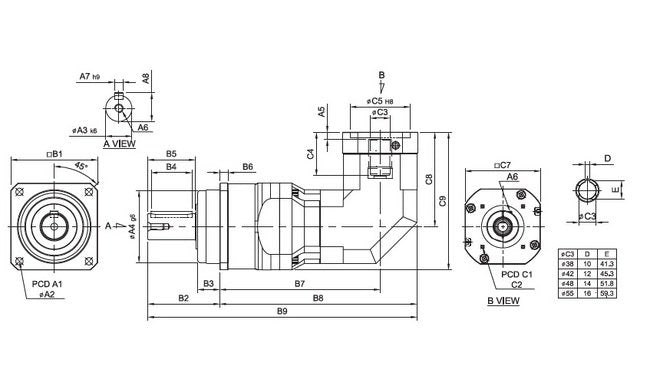

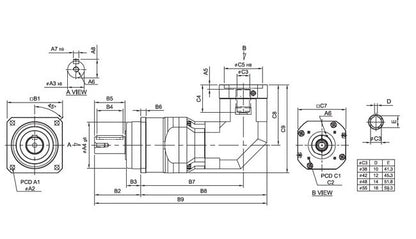

Product Specifications
Dimensions Dimension A1
215 mm
Dimensions Dimension A2
13 mm
Dimensions Dimension A3
55 mm
Dimensions Dimension A4
160 mm
Dimensions Dimension A5
10 mm
Dimensions Dimension A6
M14 x P2.0
Dimensions Dimension A7
16 mm
Dimensions Dimension A8
59 mm
Dimensions Dimension B1
180 mm
Dimensions Dimension B2
112 mm
Dimensions Dimension B3
26 mm
Dimensions Dimension B4
70 mm
Dimensions Dimension B5
82 mm
Dimensions Dimension B6
15 mm
Dimensions Dimension B7
280 mm
Dimensions Dimension B8
351 mm
Dimensions Dimension B9
463 mm
Dimensions Dimension C1
145 mm | 165 mm | 215 mm
Dimensions Dimension C2
M8 | M10 | M12
Dimensions Dimension C3
28 mm | 32 mm | 35 mm
Dimensions Dimension C4
85 mm
Dimensions Dimension C5
110 mm | 130 mm | 180 mm
Dimensions Dimension C6
M10 x P1.5
Dimensions Dimension C7
146 mm | 150 mm | 190 mm
Dimensions Dimension C8
165.7 mm
Dimensions Dimension C9
255.7 mm
Features Features
High Load-Bearing CapacityHigh load-bearing capacity is achieved by a dual tapper bearing.One-Piece Helical Gear BoxThe gear box and internal ring gear are a one-piece construction design. The speed reduction mechanism employs helical gears that provide two times the meshing rate of teeth compared to regular spur gears. It operates very smoothly, has low noise, high output torque, and low backlash.Full Needle Roller Bearings DesignThe planetary gear transmission employs full needle roller bearings without a retainer to increase the contact surface. This greatly improves structural rigidity and service life.Collet Locking MechanismThe input-end and the motor are coupled through a collet locking mechanism. The mechanism is dynamically balanced to ensure concentricity and balance on the connection and has no backlash for power transmission while running at a high speed.Integrated Planetary Arm BracketThe planetary arm bracket and the output shaft are a one-piece construction design that increases torsional rigidity and accuracy.
Specifications Backlash
⤠12 arc·min
Specifications Backlash Class
P2
Specifications Efficiency
⥠92 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
21.2 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
15180 N
Specifications Maximum Input Speed N1b
4000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
17860 N
Specifications Model
180
Specifications Mounting Position
Any
