Sethco Corrosive Liquid Filtration System
Sethco Corrosive Liquid Filtration System
SKU:FIL-61e69f
Efficient, precise corrosive liquid filtration system with 3200-10000 GPH capacity. Ideal for industrial chemicals up to 180°F.
Regular price
$7,500.00
Regular price
Sale price
$7,500.00
Unit price
per
Initiate Order
Sethco Corrosive Liquid Filtration System
$7,500.00
Quantity: 1
Claim Your Seller Account
Sethco Corrosive Liquid Filtration System
$7,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

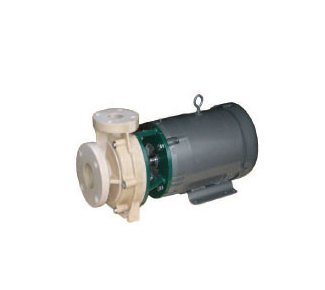

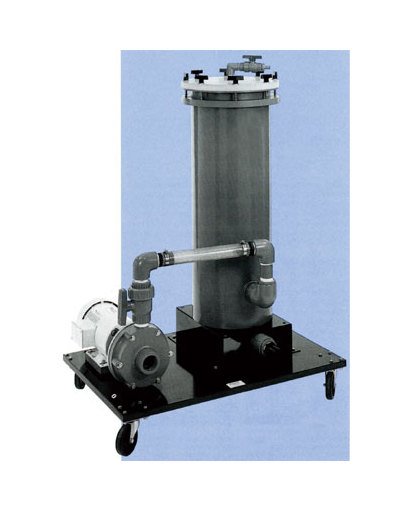

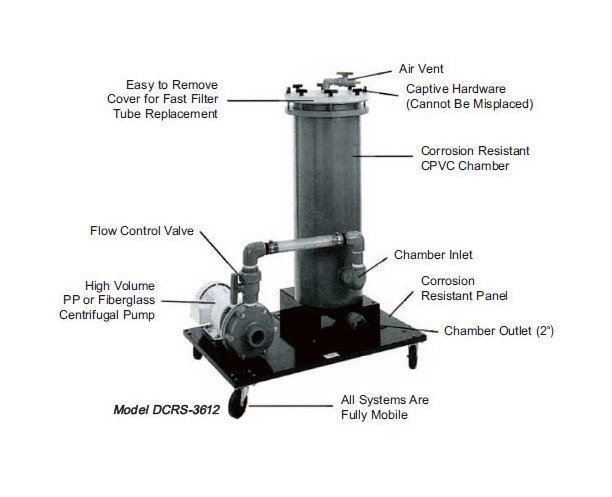

The Sethco Corrosive Liquid Filtration System offers precision filtration for corrosive industrial chemicals with a capacity ranging from 3200 to 10000 GPH. Designed with a CPVC filter chamber, PP or fiberglass pump, and corrosion-resistant panel, this system ensures efficient and reliable operation at temperatures up to 180°F. With options for different filter tube densities and materials like Polypropylene or Cotton, this system provides versatility in controlled filtration. Ideal for acid and alkaline plating solutions, it comes fully assembled for instant deployment on a corrosion-resistant panel with casters.
Product Specifications
Filter Tubes Filter Tubes

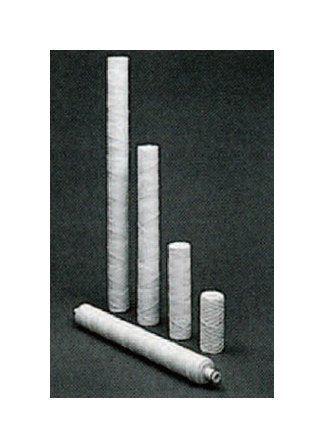

Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns),and Special C (0.4 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Specifications Flow Rate
3200 to 4800 gph | 12000 to 18000 lph
Specifications Height
37 " | 37 cm
Specifications Length
24 " | 24 cm
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Pump Model No
CRS-110PP
Specifications Quantity Of Filter Tubes In Chamber
12 | 24
Specifications Size Of Filter Tubes In Chamber
12 Tubes - 20", 15 Micron | 24 Tubes - 10", 15 Micron
Specifications System Inletchamber Outlet
2-1/2 x 2 "
Specifications Weight
195.0 lbs | 89 kg
Specifications Width
36 " | 36 cm
