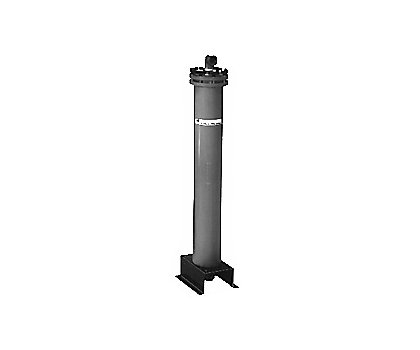

Sethco CPVC Bag Filter Chambers
Sethco CPVC Bag Filter Chambers
SKU:FIL-562d71
Efficiently filter corrosive liquids with Sethco CPVC Bag Filter Chambers. Reliable, easy maintenance for industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sethco CPVC Bag Filter Chambers
$699.99
Quantity: 1
Claim Your Seller Account
Sethco CPVC Bag Filter Chambers
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco CPVC Bag Filter Chambers provide efficient filtration of corrosive liquids with a wide range of particle retention options from 1 to 50 microns. Constructed with CPVC material, these chambers can withstand temperatures up to 200°F, making them ideal for industrial applications. With chamber sizes ranging from small to large, and a filtration rate of up to 7500 GPH, these units offer reliable performance and easy maintenance. The 'Drop-in' filter bag replacement system ensures hassle-free operation, while the positive bag seal prevents liquid bypass, resulting in cost-effective filtration with minimal media disposal.
Product Specifications
Specifications Bag Size
#B
Specifications Depth
4-1/2 "
Specifications Height
28 "
Specifications Inlet Connection
3/4"
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Pressure At 72f
100 psi
Specifications Max Temperature
200 ºF
Specifications Micron
1 Micron | 10 Micron | 25 Micron | 50 Micron
Specifications Outlet Connection
3/4"
Specifications Recommended Filtration Rate
600 gph
Specifications Weight
7.25 lbs
Specifications Width
4-1/2 "
