Sethco D-Series Eight Tube Filter Chamber
Sethco D-Series Eight Tube Filter Chamber
SKU:FIL-abc6aa
High-volume CPVC eight-tube filter chamber for corrosive liquids with 10-40" tube compatibility. Ideal for institutional use.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Sethco D-Series Eight Tube Filter Chamber
$1,499.99
Quantity: 1
Claim Your Seller Account
Sethco D-Series Eight Tube Filter Chamber
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco D-Series Eight Tube Filter Chamber is a high-volume filtration solution designed for handling large flows of corrosive liquids at high flow rates. Made of CPVC, it offers durability and resistance to corrosion, with a max temperature of 200 °F and max pressure of 50 psi. This chamber can accommodate 10", 20", 30", or 40" standard filter tubes, making it versatile for different filtration needs. With a recommended filtration rate ranging from 2400 to 6000 gph, this chamber, mounted on a corrosion-resistant stand, is suitable for various institutional applications requiring robust filtration systems.
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.

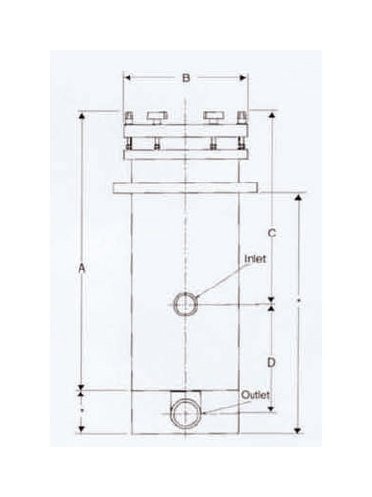

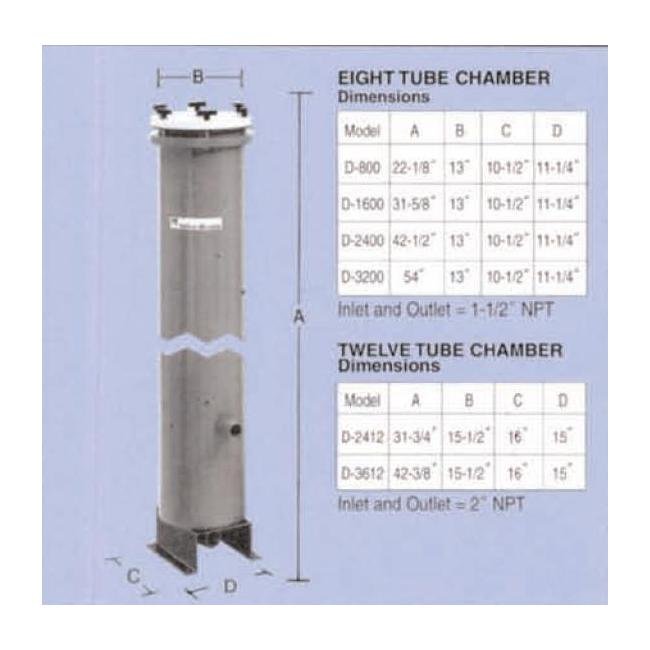

Specifications Dimension A
54 "
Specifications Dimension B
13 "
Specifications Dimension C
10-1/2 "
Specifications Dimension D
11-1/4 "
Specifications Inletoutlet
1-1/2 in NPT
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Pressure At 72f
50 psi
Specifications Max Temperature
200 ºF
Specifications Quantity Of Filter Tubes In Chamber
8 | 32
Specifications Recommended Filtration Rate Contamination High
2400 to 4800 gph
Specifications Recommended Filtration Rate Contamination Low
4800 to 6000 gph
Specifications Series
D Series
Specifications Size Of Filter Tubes In Chamber
32 Tubes - 10", 15 Micron | 8 Tubes - 40", 15 Micron

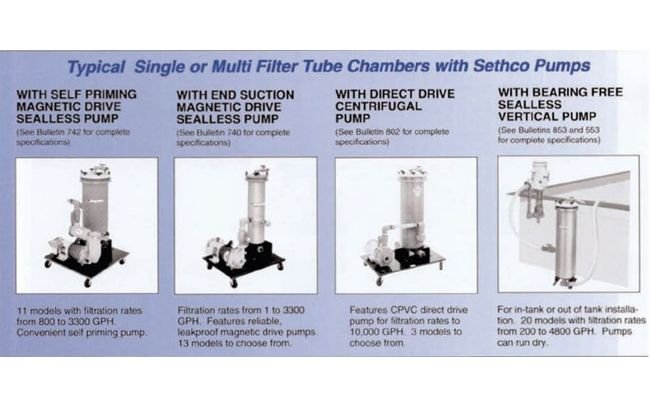

Specifications Single Or Multi Filter Tube Chambers With
WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump. | 3 models to choose from WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry.
Specifications Weight
98.0 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
