Sethco D-Series High Volume Eight Tube Filter Chamber
Sethco D-Series High Volume Eight Tube Filter Chamber
SKU:FIL-150e6f
Sethco D-Series High Volume Eight Tube Filter Chamber - Corrosion Resistant, CPVC Material, 75-7200 GPH, Floor or Tank Mount
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sethco D-Series High Volume Eight Tube Filter Chamber
$1,899.99
Quantity: 1
Claim Your Seller Account
Sethco D-Series High Volume Eight Tube Filter Chamber
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

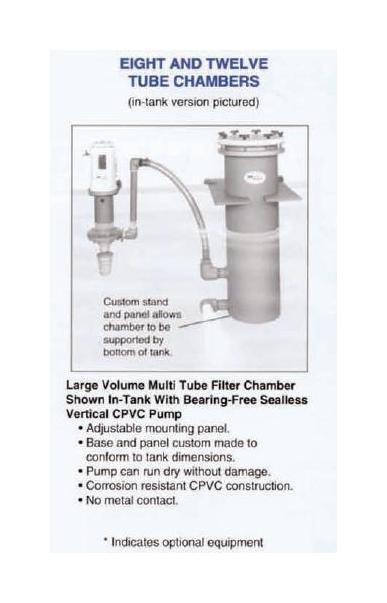

The Sethco D-Series Eight Tube Filter Chamber is engineered for high-flow applications, with a filtration capacity ranging from 75 GPH to 7200 GPH. Constructed with CPVC material, it can withstand corrosive liquids at temperatures up to 200°F and pressures of up to 50 psi. This chamber accommodates 10", 20", 30", or 40" filter tubes, or multiple 10" tubes, making it versatile for various filtration needs. Featuring a corrosion-resistant stand, this chamber is available for floor mount or in-tank installations, providing a reliable solution for heavy dirt levels and large flows.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.

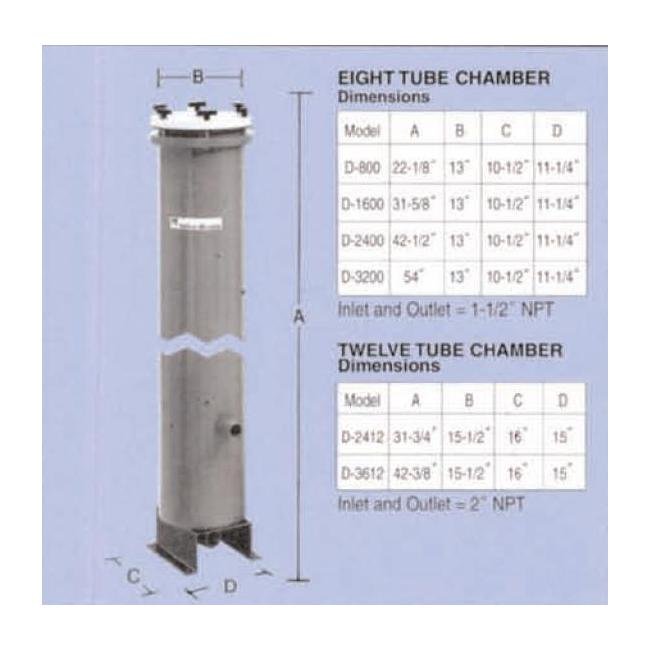

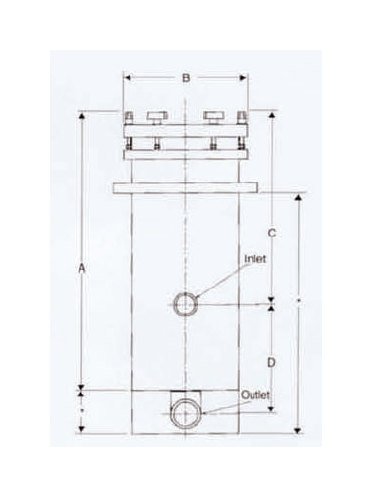

Specifications Dimension A
22-1/8 "
Specifications Dimension B
13 "
Specifications Dimension C
10-1/2 "
Specifications Dimension D
11-1/4 "
Specifications Inletoutlet
1-1/2 in NPT
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Pressure At 72f
50 psi
Specifications Max Temperature
200 ºF
Specifications Quantity Of Filter Tubes In Chamber
8
Specifications Recommended Filtration Rate Contamination High
800 to 1600 gph
Specifications Recommended Filtration Rate Contamination Low
1600 to 2400 gph
Specifications Series
D Series
Specifications Size Of Filter Tubes In Chamber
8 Tubes - 10", 15 Micron
Specifications Single Or Multi Filter Tube Chambers With

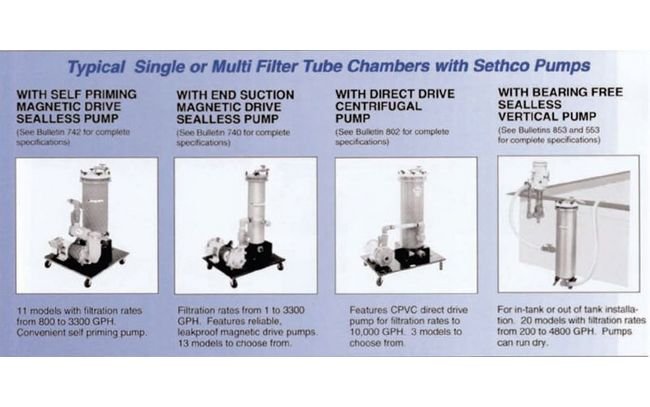

WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump. | 3 models to choose from WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry.
Specifications Weight
63.0 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
