Sethco DL Series Single Tube Filter Chamber
Sethco DL Series Single Tube Filter Chamber
SKU:FIL-01791c
Efficient Sethco DL Series Single Tube Filter Chamber for filtration rates from 75 GPH to 7200 GPH, ideal for diverse applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sethco DL Series Single Tube Filter Chamber
$299.99
Quantity: 1
Claim Your Seller Account
Sethco DL Series Single Tube Filter Chamber
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

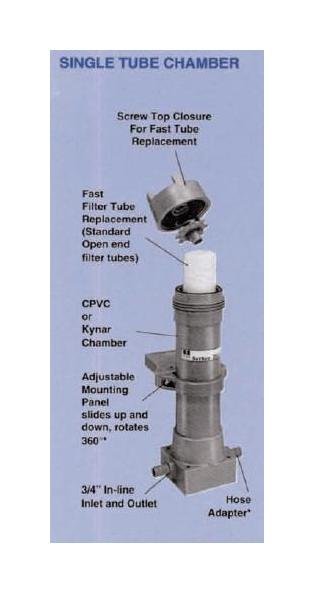

The Sethco DL Series Single Tube Filter Chamber is designed to provide efficient filtration at rates ranging from 75 GPH to 7200 GPH, catering to both consumer and institutional filtration needs. Constructed from CPVC/Clear PVC materials, this chamber offers a robust solution for in-tank or out of tank filtration requirements. With a maximum pressure of 100 psi at 72°F and a temperature resistance of up to 140°F, it ensures reliable and durable performance. The screw top covers allow for easy filter tube replacement, offering convenience and versatility. Engineered for compatibility with standard filter or carbon filter cartridges, this chamber is a dependable choice for a variety of filtration applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.
Note Note
Figures shown is for DD series, KK series, rated at 85 psi @ 72ºFAdd approximately 2 pounds for Kynar® chambers

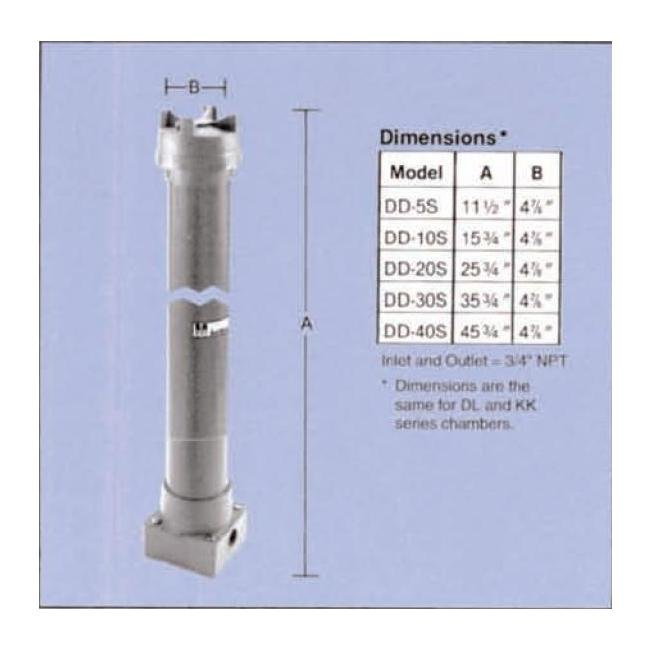

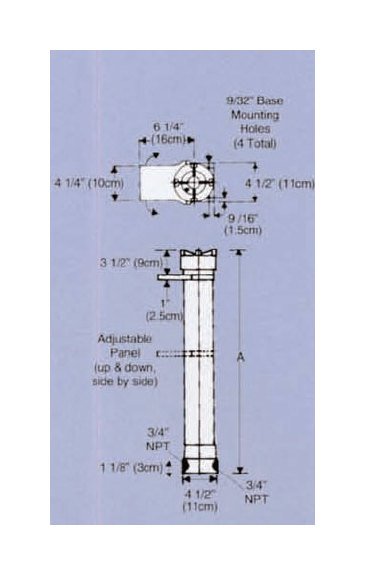

Specifications Dimension A
15-3/4 "
Specifications Dimension B
4-7/8 "
Specifications Inletoutlet
3/4 in NPT
Specifications Manufacturer
Sethco
Specifications Material
CPVC/Clear PVC
Specifications Max Pressure At 72f
100 psi
Specifications Max Temperature
140 ºF
Specifications Quantity Of Filter Tubes In Chamber
1
Specifications Recommended Filtration Rate Contamination High
75 to 150 gph
Specifications Recommended Filtration Rate Contamination Low
150 to 300 gph
Specifications Series
DL Series
Specifications Size Of Filter Tubes In Chamber
1 Tube - 10", 15 Micron
Specifications Single Or Multi Filter Tube Chambers With

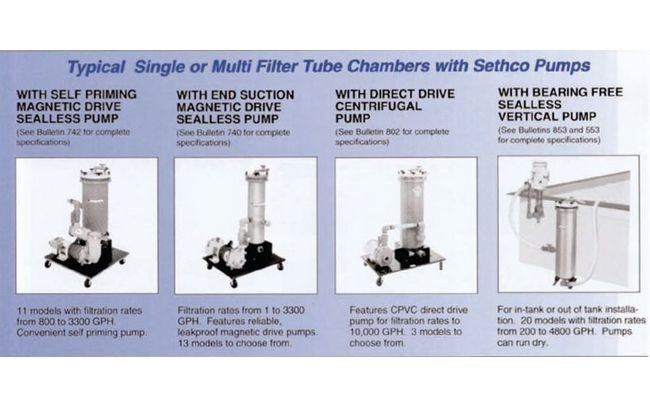

WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry. | WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. 3 models to choose from. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump.
Specifications Weight
4.3 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
