Sethco Double Duty Infiltrator Filtration System CPVC DCA-24 - 150-7600 GPH
Sethco Double Duty Infiltrator Filtration System CPVC DCA-24 - 150-7600 GPH
SKU:FIL-ed3fab
Efficient Sethco Double Duty Infiltrator System - 150-7600 GPH, Corrosion-Resistant CPVC Chamber, Self-Priming Pump, High-Volume Circulation
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Sethco Double Duty Infiltrator Filtration System CPVC DCA-24 - 150-7600 GPH
$2,899.99
Quantity: 1
Claim Your Seller Account
Sethco Double Duty Infiltrator Filtration System CPVC DCA-24 - 150-7600 GPH
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

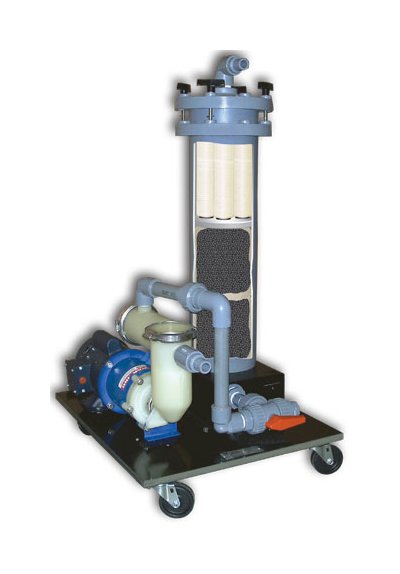

The Sethco Double Duty Infiltrator System DCA-24 offers unparalleled filtration capacity ranging from 150 to 7600 gallons per hour. Equipped with a corrosion-resistant CPVC chamber and a reliable 1/4 hp TEFC motor, this system ensures efficient filtration and a maximum operating temperature of 200°F. The self-priming vertical in-tank pump with dual impeller design ensures high-volume circulation while eliminating leakage. With easy setup and robust construction, the Sethco Double Duty Infiltrator System is a dependable filtration solution for industrial and institutional applications.
Product Specifications
Accessories Accessories
All models are complete with inlet strainer, hose and hose clamps, filter cartridges and activated granular carbon are not included, as required, for start-up and continuous operation.All models with horizontal pump, are mounted on a rigid phenolic panel with rubber tire ball bearing casters for portability.
Filter Chamber Filter Chamber
Model PMSP polypropylene, self-priming magnetic drive centrifugal pump is furnished with a TEFC motor.Model PM polypropylene, magnetic centrifugal drive pump is furnished with a TEFC motor.Model ZDX corrosion resistant CPVC vertical pump. The versatile pump is specially designed to be mounted in-tank for self priming convenience or out-of-tank to save in-tank space. The pump incorporates a unique opposing twin-impeller design to provide high volume circulation and eliminate leakage up the pump column. No bearings or seals and no wearing parts permit dry running without damage. CPVC construction eliminates any metal contact with solution.
Media Specifications Media Specifications
Organic impurities Removed with Mefiag Activated Granular Carbon. A specially processed carbon has been designed for purification of plating solutions. The granules have much greater surface area than conventional carbons. This carbon is extremely adsorptive yet highly selective. It quickly and completely removes organic impurities. Dye contaminants from nickel acetate sealing solutions and crack detection liquids are easily removed. The low cost carbon charge eliminates all mess. No slurries no time lost no solution lost a minimum of handling, and best of all no expensive cartridge to buy. In-Filtrator Systems can hold up to 75 pounds of activated granular carbon.Solid Impurities Removed with Mefiag Depth Filter Tubes. Mefiag has designed its depth filter cartridges with O-ring seals to make replacement quick and easy. This patented feature provides 100% depth filtration with no possibility of liquid bypassing, assures no leakage and takes full advantage of maximum filtration area.
Motors Motors
All motors are TEFC. All motors 1 HP are equipped with waterproof switch and grounded cord for 115V standard.
Pump Pump
Model PMSP polypropylene, self-priming magnetic drive centrifugal pump is furnished with a TEFC motor.Model PM polypropylene, magnetic centrifugal drive pump is furnished with a TEFC motor.Model ZDX corrosion resistant CPVC vertical pump. The versatile pump is specially designed to be mounted in-tank for self priming convenience or out-of-tank to save in-tank space. The pump incorporates a unique opposing twin-impeller design to provide high volume circulation and eliminate leakage up the pump column. No bearings or seals and no wearing parts permit dry running without damage. CPVC construction eliminates any metal contact with solution.
Specifications Carbon Capacity
45 lbs
Specifications Carbon Flow Rate
2250 gph | 8500 lph
Specifications Chamber Model No
DCA-24 (CPVC)
Specifications Inlet Npt
1-1/2 "
Specifications Manufacturer
Sethco
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Tefc
1/4 hp
Specifications Outlet Npt
1 "
Specifications Pump Model No
ZDX-1/2
Specifications System Type
With Self Priming Vertical In-Tank Pump & Floor Mounted Chamber
Specifications Voltage And Phase Required
115V, 60 Hz, 1-Phase
Warranty Warranty
One year warranty against defective parts and workmanship. Request Mefiag's Terms and Conditions for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
