Sethco Double Duty Infiltrator Systems - Multi-Application Filtration Solutions
$2,899.99
Quantity: 1
Claim Your Seller Account
Sethco Double Duty Infiltrator Systems - Multi-Application Filtration Solutions
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

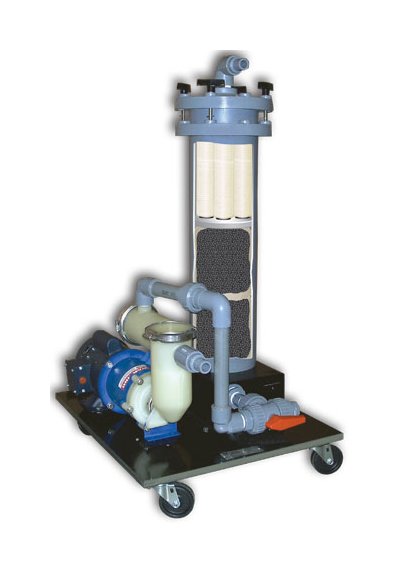

The Sethco Double Duty Infiltrator Systems offer a versatile solution with filtration rates ranging from 150 GPH to 7600 GPH. Featuring a chamber model DCA-23B (CPVC), self-priming magnetic drive pump, and a 1 hp TEFC motor, these systems are designed for high volume circulation with maximum efficiency. The innovative design eliminates leakage and allows for dry running without damage. Each system comes complete with essential accessories for start-up and operation, ensuring convenience and reliability.
Product Specifications
Accessories Accessories
All models are complete with inlet strainer, hose and hose clamps, filter cartridges and activated granular carbon are not included, as required, for start-up and continuous operation.All models with horizontal pump, are mounted on a rigid phenolic panel with rubber tire ball bearing casters for portability.
Filter Chamber Filter Chamber
Model PMSP polypropylene, self-priming magnetic drive centrifugal pump is furnished with a TEFC motor.Model PM polypropylene, magnetic centrifugal drive pump is furnished with a TEFC motor.Model ZDX corrosion resistant CPVC vertical pump. The versatile pump is specially designed to be mounted in-tank for self priming convenience or out-of-tank to save in-tank space. The pump incorporates a unique opposing twin-impeller design to provide high volume circulation and eliminate leakage up the pump column. No bearings or seals and no wearing parts permit dry running without damage. CPVC construction eliminates any metal contact with solution.
Media Specifications Media Specifications
Organic impurities Removed with Mefiag Activated Granular Carbon. A specially processed carbon has been designed for purification of plating solutions. The granules have much greater surface area than conventional carbons. This carbon is extremely adsorptive yet highly selective. It quickly and completely removes organic impurities. Dye contaminants from nickel acetate sealing solutions and crack detection liquids are easily removed. The low cost carbon charge eliminates all mess. No slurries no time lost no solution lost a minimum of handling, and best of all no expensive cartridge to buy. In-Filtrator Systems can hold up to 75 pounds of activated granular carbon.Solid Impurities Removed with Mefiag Depth Filter Tubes. Mefiag has designed its depth filter cartridges with O-ring seals to make replacement quick and easy. This patented feature provides 100% depth filtration with no possibility of liquid bypassing, assures no leakage and takes full advantage of maximum filtration area.
Motors Motors
All motors are TEFC. All motors 1 HP are equipped with waterproof switch and grounded cord for 115V standard.
Pump Pump
Model PMSP polypropylene, self-priming magnetic drive centrifugal pump is furnished with a TEFC motor.Model PM polypropylene, magnetic centrifugal drive pump is furnished with a TEFC motor.Model ZDX corrosion resistant CPVC vertical pump. The versatile pump is specially designed to be mounted in-tank for self priming convenience or out-of-tank to save in-tank space. The pump incorporates a unique opposing twin-impeller design to provide high volume circulation and eliminate leakage up the pump column. No bearings or seals and no wearing parts permit dry running without damage. CPVC construction eliminates any metal contact with solution.
Specifications Chamber Model No
DCA-23B (CPVC)
Specifications Filter Cartridge
20A
Specifications Filter Cartridge Flow Rate
2100 gph | 7950 lph
Specifications Inlet Npt
1-1/2 "
Specifications Manufacturer
Sethco
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Motor Tefc
1 hp
Specifications Outlet Npt
1 "
Specifications Pump Model No
PMSP-1040NT
Specifications Quantity Of Filter Tubes In Chamber
7
Specifications System Type
With Self Priming Magnetic Drive, Sealless Centrifugal Pump
Specifications Voltage And Phase Required
115V, 60 Hz, 1-Phase
Warranty Warranty
One year warranty against defective parts and workmanship. Request Mefiag's Terms and Conditions for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
