Sethco KK Series Single Tube Filter Chamber
Sethco KK Series Single Tube Filter Chamber
SKU:FIL-b792f5
Reliable Sethco KK Series Single Tube Filter Chamber for filtration up to 750 GPH. Kynar® construction, easy maintenance, and precise filtration.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sethco KK Series Single Tube Filter Chamber
$399.99
Quantity: 1
Claim Your Seller Account
Sethco KK Series Single Tube Filter Chamber
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

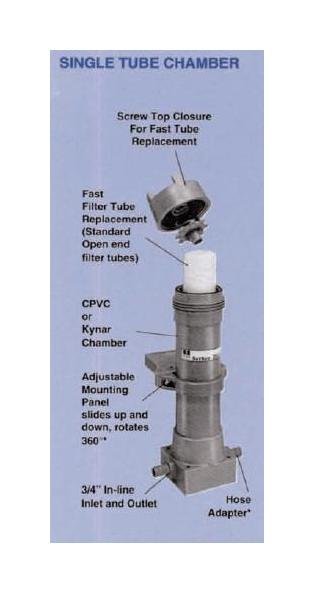

The Sethco KK Series Single Tube Filter Chamber is engineered for efficient filtration processes, with a maximum capacity of 750 GPH. Constructed from sturdy Kynar® material, this chamber can withstand temperatures up to 210 °F and pressures of up to 100 psi at 72 °F. The chamber features a screw top cover for easy filter tube replacement, making maintenance a breeze. With options for 1 or 2 filter tubes in the chamber, each sized for optimal filtration results, this chamber is versatile and reliable for various applications. Compatible with Sethco pumps for seamless integration into your filtration system.
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.
Note Note

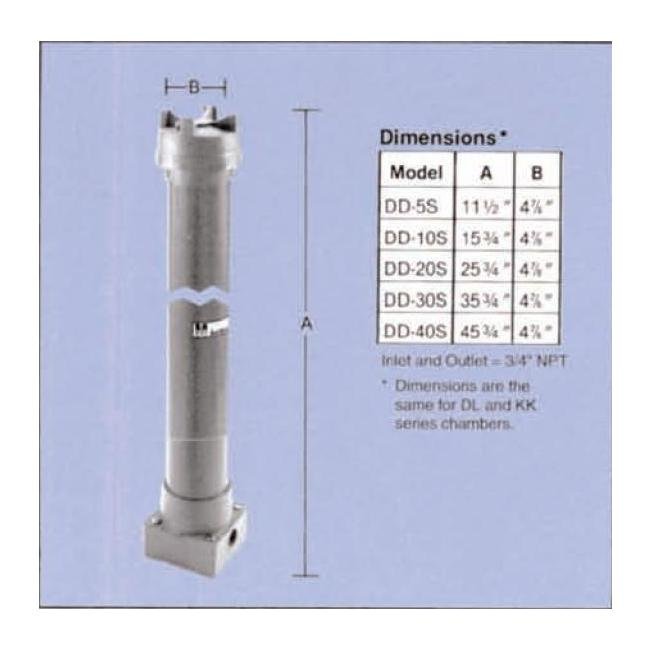

Figures shown is for DD series, KK series, rated at 85 psi @ 72ºFAdd approximately 2 pounds for Kynar® chambers

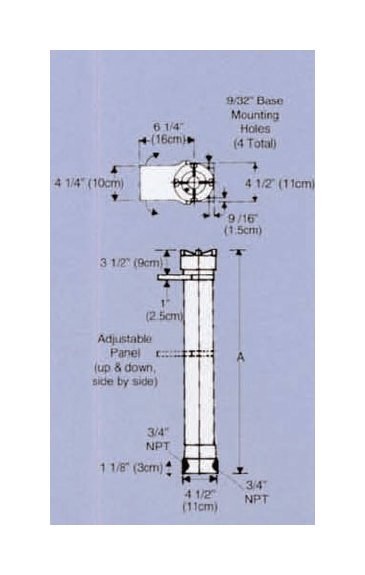

Specifications Dimension A
25-3/4 "
Specifications Dimension B
4-7/8 "
Specifications Inletoutlet
3/4 in NPT
Specifications Manufacturer
Sethco
Specifications Material
Kynar®
Specifications Max Pressure At 72f
100 psi
Specifications Max Temperature
210 ºF
Specifications Quantity Of Filter Tubes In Chamber
1 | 2
Specifications Recommended Filtration Rate Contamination High
150 to 300 gph
Specifications Recommended Filtration Rate Contamination Low
300 to 600 gph
Specifications Series
KK Series
Specifications Size Of Filter Tubes In Chamber
1 Tube - 20", 15 Micron | 2 Tubes - 10", 15 Micron

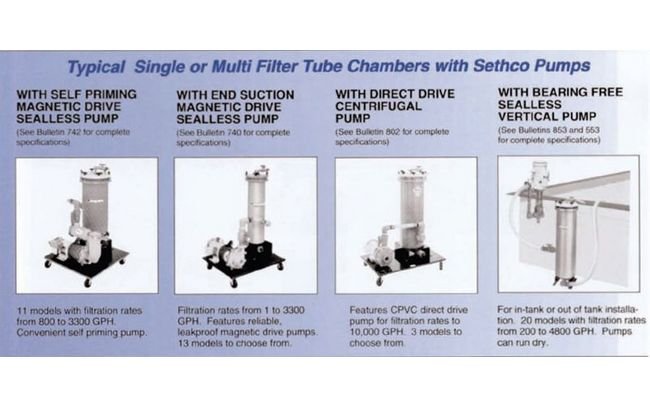

Specifications Single Or Multi Filter Tube Chambers With
WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry. | WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. 3 models to choose from. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump.
Specifications Weight
8.1 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
