Sethco KKM Series Magnetic Drive Centrifugal Filter System
Sethco KKM Series Magnetic Drive Centrifugal Filter System
SKU:FIL-5fcfb3
Corrosion-resistant filtration system with leakproof operation, ideal for electroplating and pharmaceutical applications.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Sethco KKM Series Magnetic Drive Centrifugal Filter System
$3,999.99
Quantity: 1
Claim Your Seller Account
Sethco KKM Series Magnetic Drive Centrifugal Filter System
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

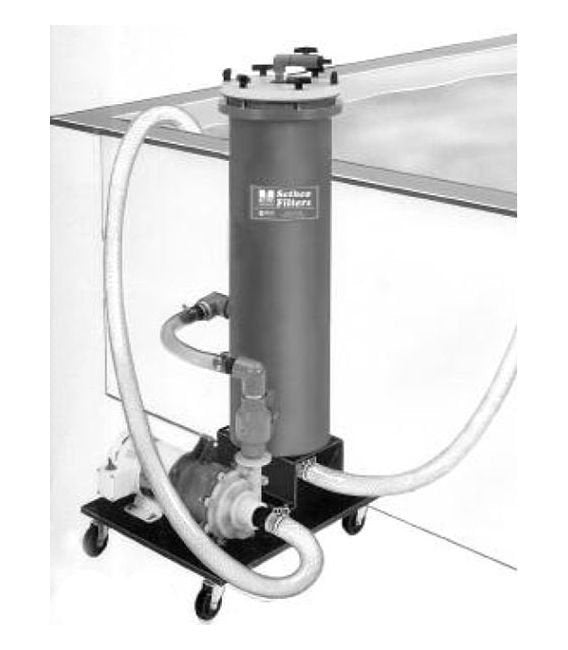

The Sethco KKM Series Magnetic Drive Centrifugal Filter System offers exceptional corrosion-resistant liquid filtration with flow rates ranging from 1 to 4500 GPH. Featuring sealless pumps with magnetic drives for leakproof operation, this system is available in various sizes with CPVC or optional Kynar construction. Ideal for applications in electroplating, pharmaceutical, and sensitive solutions, it comes fully assembled and tested for immediate use. With temperature-resistant options and a range of filter tube densities, this system ensures long-term reliability and efficiency.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
300 to 900 gph | 1100 to 3400 lph
Specifications Height
22 " | 56 cm
Specifications Length
20 " | 51 cm
Specifications Manufacturer
Sethco
Specifications Material
Kynar
Specifications Max Operating Temperature
210 ºF | 99 ºC
Specifications Pump Model No
KM-1035NT-3/4T1
Specifications Quantity Of Filter Tubes In Chamber
3
Specifications Series
KKM
Specifications Size Of Filter Tubes In Chamber
3 Tubes - 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
75.0 lbs | 37.3 kg
Specifications Width
24 " | 61 cm
Warranty Warranty
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
