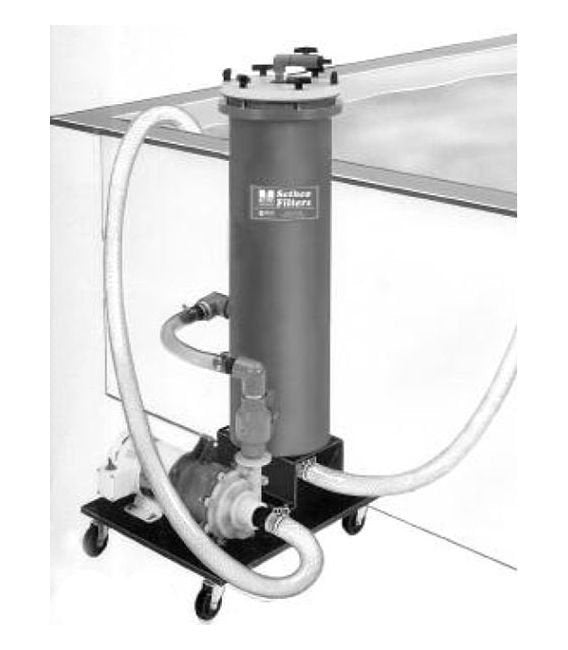

The Sethco Magnetic Drive Centrifugal Filter System, part of the DPM Series, offers exceptional corrosion resistance and filtration rates ranging from 1 to 4500 GPH. Featuring a sealless pump design and CPVC construction, this system ensures leakproof operation and durability. Ideal for electroplating, pharmaceutical, and other sensitive solutions, it comes fully assembled with accessories, including 15 micron filter tubes. With a one-year warranty and compliance with industry standards, this system is a reliable solution for demanding applications.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
3500 to 4500 gph | 13000 to 17000 lph
Specifications Height
49 " | 124 cm
Specifications Length
24 " | 61 cm
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Pump Model No
PM-1500-3T3
Specifications Quantity Of Filter Tubes In Chamber
12 | 24
Specifications Series
DPM
Specifications Size Of Filter Tubes In Chamber
12 Tubes - 20", 15 Micron | 24 Tubes - 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
155 lbs | 77.5 kg
Specifications Width
36 " | 91 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
