Sethco Magnetic Drive Centrifugal Filter System - DPM Series
Sethco Magnetic Drive Centrifugal Filter System - DPM Series
SKU:FIL-8c0de0
Sethco Magnetic Drive Centrifugal Filter System - DPM Series: Corrosion-resistant filtration for sensitive solutions, with leakproof magnetic drive pump technology.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Sethco Magnetic Drive Centrifugal Filter System - DPM Series
$2,599.99
Quantity: 1
Claim Your Seller Account
Sethco Magnetic Drive Centrifugal Filter System - DPM Series
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

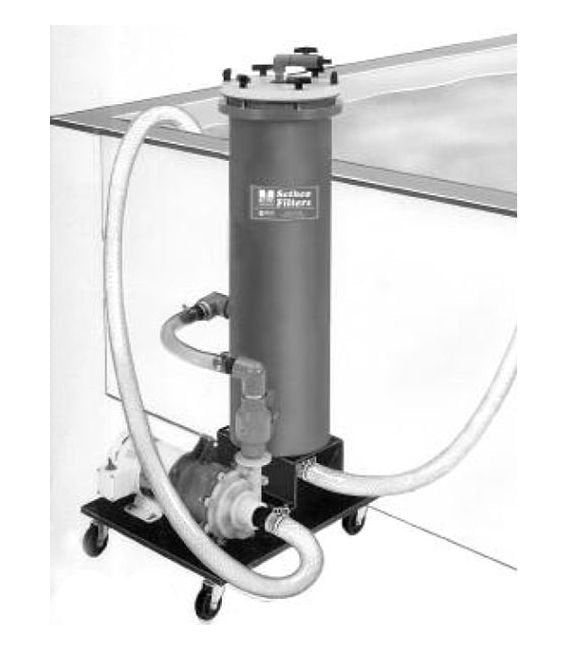

The Sethco Magnetic Drive Centrifugal Filter System - DPM Series offers unparalleled corrosion-resistant liquid filtration capabilities. With 15 sizes ranging from flow rates of 1 to 4500 GPH, this system features a leakproof, sealless pump driven by magnetic technology for secure operation. Constructed with CPVC material, it meets the demands of electroplating, pharmaceutical, photographic, and other sensitive solutions. Each system comes fully assembled, tested, and mounted on a corrosion-resistant panel, ensuring immediate and reliable operation. Ideal for applications requiring long-term dependability and leakproof performance.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.Same as unit above with 50% more surface area.
Specifications Flow Rate
2400 to 3300 gph | 9000 to 12500 lph
Specifications Height
70 " | 178 cm
Specifications Length
20 " | 51 cm
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Pump Model No
PM-1040HG-2T3
Specifications Quantity Of Filter Tubes In Chamber
8 | 32
Specifications Series
DPM
Specifications Size Of Filter Tubes In Chamber
32 Tubes - 10", 15 Micron | 8 Tubes - 40", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
142 lbs | 71 kg
Specifications Width
24 " | 61 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
