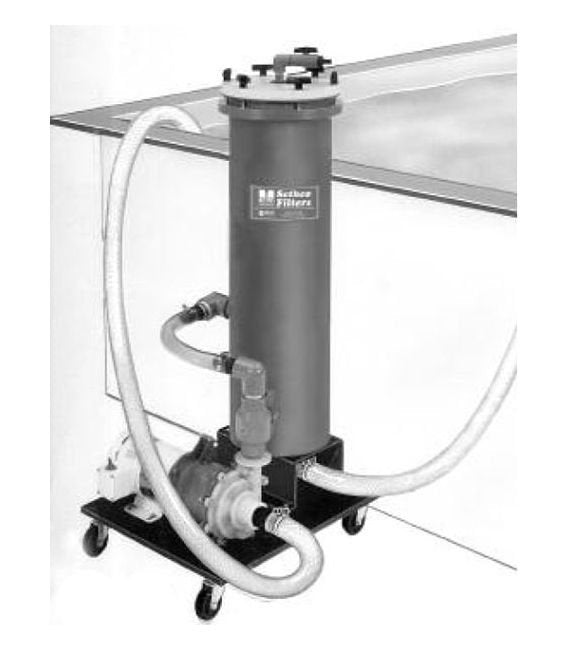

The Sethco Magnetic Drive Centrifugal Filter System is a robust solution designed for corrosive liquid filtration in industrial settings. With a flow rate ranging from 1 to 4500 GPH, this system offers 15 sizes to meet various filtration needs. Featuring a sealless pump with magnetic drive technology for leakproof operation, it is constructed with CPVC material and can be upgraded to Kynar for specific models. Ideal for applications like electroplating, pharmaceutical, and radioactive solutions, this system includes standard chambers, filter tubes, and essential accessories for quick and efficient startup.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
900 to 2700 gph | 3400 to 10000 lph
Specifications Height
49 " | 124 cm
Specifications Length
20 " | 51 cm
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Pump Model No
PM-1040NT-1T1
Specifications Quantity Of Filter Tubes In Chamber
3 | 9
Specifications Series
DPM
Specifications Size Of Filter Tubes In Chamber
3 Tubes - 30", 15 Micron | 9 Tubes- 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
92.0 lbs | 45.8 kg
Specifications Width
24 " | 61 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
